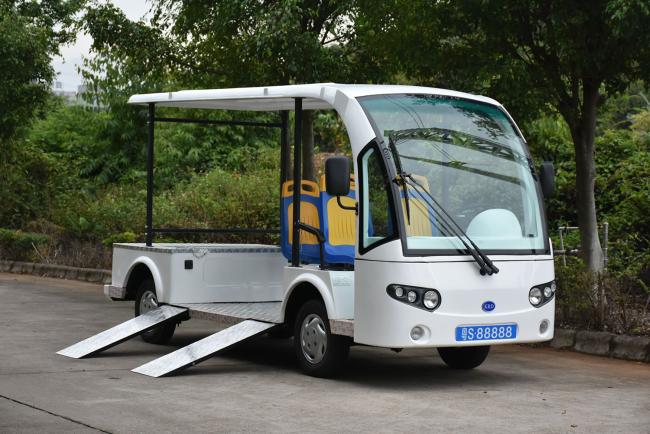

Special Design ADA Accessible Electric Sightseeing Utility Cart With 4 Bus Seats For Disabled

Feature Description

1.ADA accessible electric cart easily for wheelchair onboard.

2.full welded steel chassis good loading capacity.

3.low speed low noise safety first.

Dimensions

L×W×H : 4050×1500×1950mm

F/R Tread : 1200/1200mm

Axle Distance : 2300mm

Curb Weight : 920kg

Max. Loading : 700kg

Standard Configuration

Motor :48V/4kW DC motor, powerful, superior traction performance, low noise, overload capacity, long service life.

Controller :48V/4kW ENPOWER controller.

Body & Roof: High impact fiber glass, The body is super strength, corrosion resistance, long life of automotive glass fiber reinforced plastic material, beautiful and durable, light weight and other unique advantages.

Batteries :Free-maintenance Batteries, 8V/150Ah*6 pcs Large capacity deep cycle power battery, good safety, long life, high service life.

Windshield :See-through Laminated glass, The car is equipped with special glass car wiper.

Seats: bus seat or Sponge + artificial leather, high rebound PU, with handrails, riding comfort.

Rear view mirror :2pcs , manual exterior rear view mirror, comprehensive understanding of road conditions.

Tire :145/70 R12 Radial tire (Auto tire),Alloy Wheel,Vacuum Tire.

Chassis :Welded tubular steel with rust-proof powder coated paint.

Steering :Single reduction rack and pinion, Adopt automobile steering machine to adjust the clearance automatically. Matching perfect trapezoidal mechanism, rotation without dead angle, direction more light.

Front Suspension: The MacPherson Strut suspension system, coil spring+shock absorber.

Rear suspension :Leaf spring+shock absorber non-independent suspension.

Lighting system :2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights.

Sound system :Radio and MP3 player, Speaker.

Brake system: 4-wheel hydraulic drum brake system + handbrake.

Charger :Automatic high efficiency pulse, Output:48V/25A, Input AC 110/220V/50HZ.

Dashboard :Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button.

Color

Detailed Images
