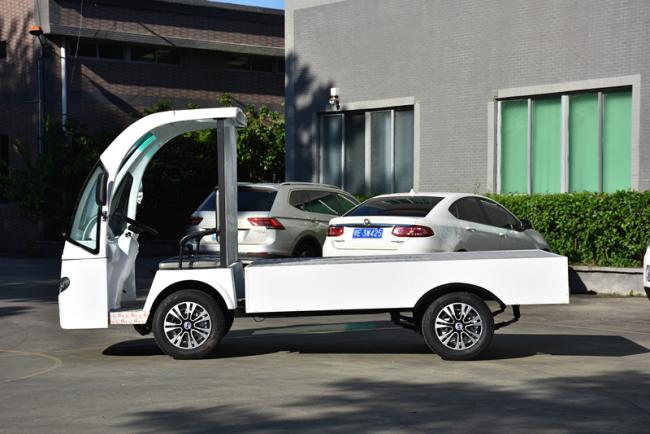

72V AC Motor Electric Cargo Van Truck With Hydraulic Tail Lift , Loading Capacity 1.5 Ton
72V AC Motor Electric Cargo Van Truck With Hydraulic Tail Lift , Loading Capacity 1.5 Ton
Description
Electric Cargo Truck use batteries to generate power , environmental pollution, efficient use of resources . It has a personalized control system, steering flexible , comfortable , lightweight and smooth driving easy. Power can be recycled, long life.
PERFORMANCE FEATURES
● The chassis structure is featured with micro-car chassis technology, and front and rear hydraulic brake.
● The hydraulic tailgate is featured with fully automated operation, which controls the lifting of waste hoppers with full load or no load.
● It is easy and efficient for operation.
● Independently-researched controller, which is featured by downhill anti-speeding, anti-slipping on ramps, energy feedback,failure error reporting, CAN communications, etc.
● The windshield is featured with lined adhesive double curved surface material,and the tires are radial vacuum tires.
● The vehicle head is featured with sightseeing vehicle style, and the compartment floor is made of steel antiskid plate, which can prevent slippage of the waste hopper in the transport and transfer processes.
Specification
| NO | Item Name | Unit | Specification |
| 1 | Dimensions(L/W/H) | mm | 4950×1500×2100 |
| 2 | Car body size | mm | 3600×1500×400 |
| 3 | Number of passengers | staff/person | 2 |
| 4 | Curb Weight | kg | 1200 |
| 5 | Rated load | kg | 1200 |
| 6 | Top speed | km/h | ≤30 |
| 7 | Minimum turning radius | m | 6 |
| 8 | Mileage | km | ≥80 |
| 9 | Tread | mm | 1200 |
| 10 | Wheelbase | mm | 2580 |
| 11 | Minimum off spacing | mm | 140 |
| 12 | Maximum Gradeability | % | 15 |
| 13 | Smallest braking distance | m | ≤4 |
| 14 | Motor Power | v/kw | 72/7.5 ( 48/5 optional ) |
| 15 | Battery pack | AH | 225 (Free mainten ance batteries) |

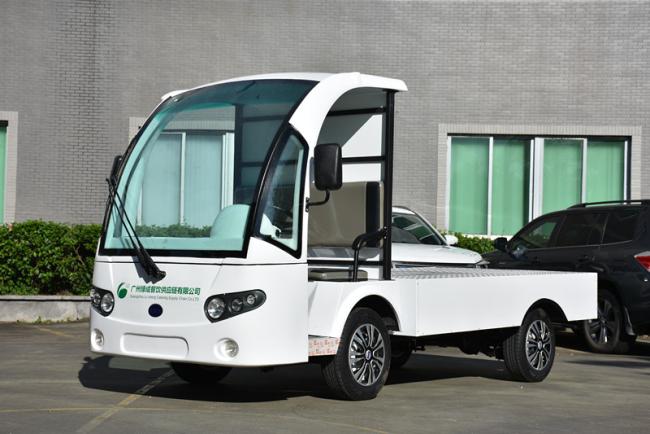

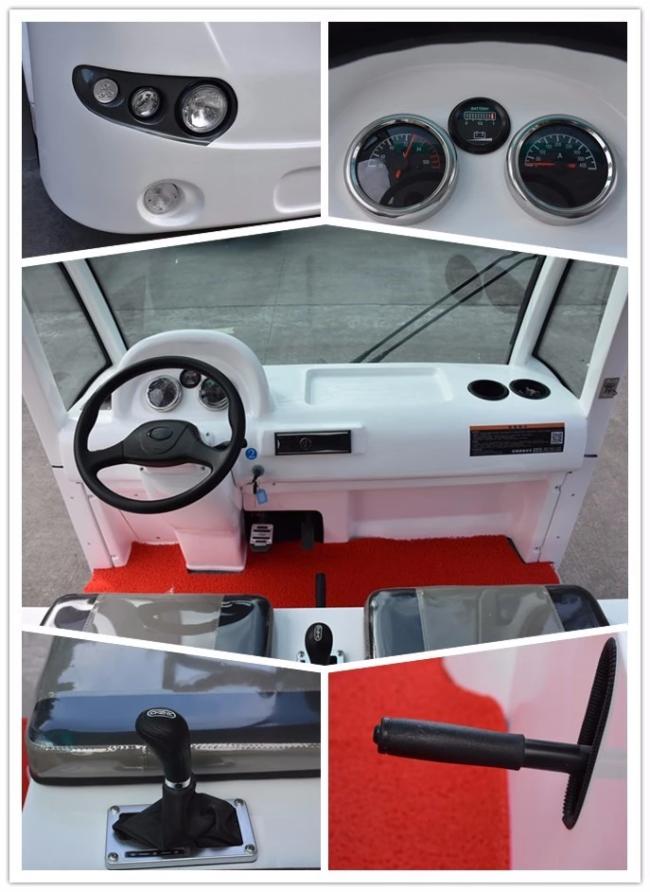

Product Detail

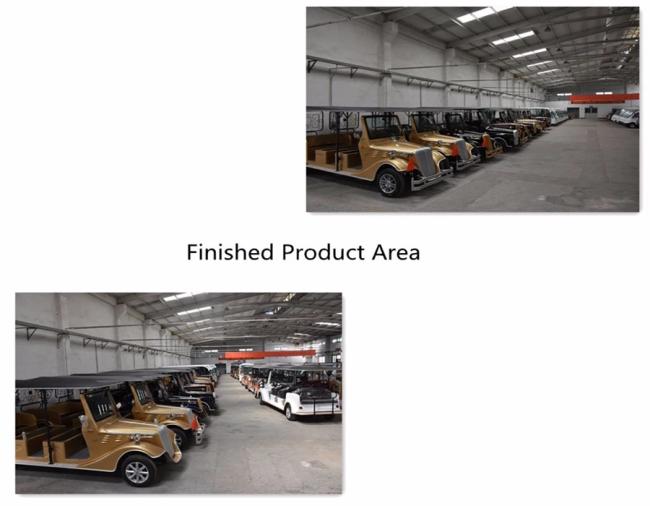

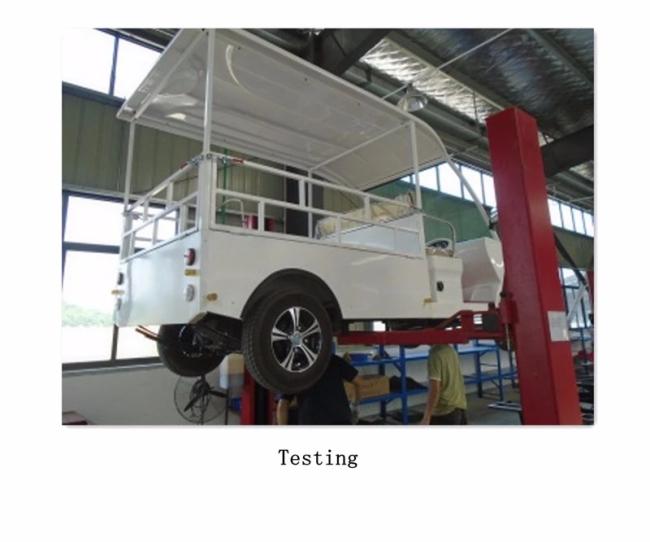

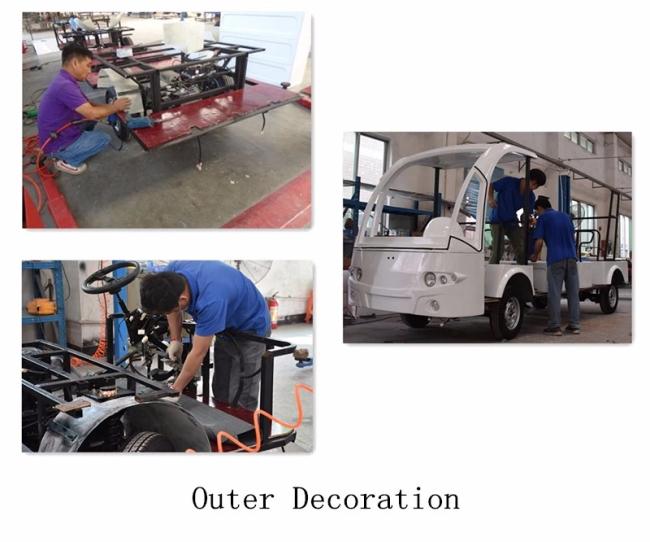

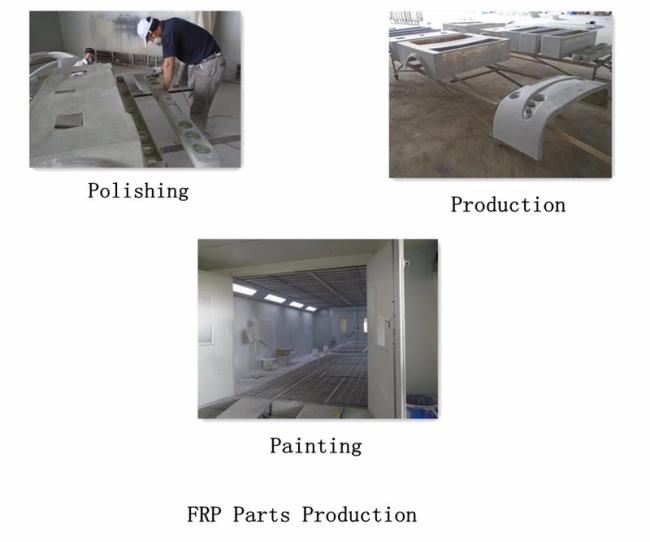

Product Processing
Main Products
Our Company
KEY WORDS:elctric cargo vehice,4 wheel electric vehicle,electric pick up truck,electric cargo truck,electric utility vehicle
