Garden Hose / Braided Yarn Reinforced PVC Hose Extrusion Line , PVC Plastic Pipe Extrusion Machine
Garden Hose / Braided Yarn Reinforced PVC Hose Extrusion Line, PVC Pipe Making Machine
The extrusion line is used to produce PVC reinfoced hoses, which is widely used in the fields of industry, agriculture, forest, architecture etc. Completed with two single screw extruders, one yarn braiding machine and other assistant machine, is featured with both high speed extrusion and even yarn braiding. With the special dies, it can produce other soft pipes also.
Process flows:

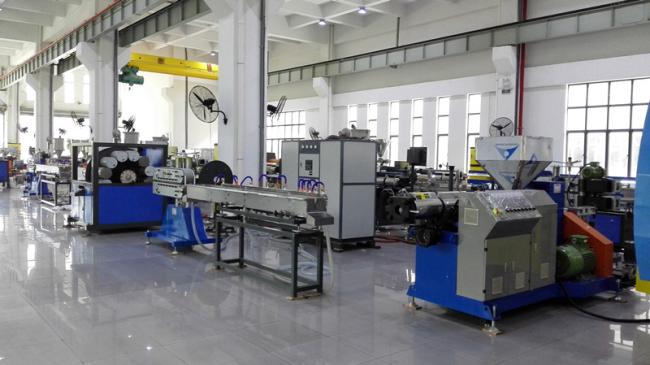

SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Fiber Winding Machine--SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Twin Position Coiler
This pvc hose pipe machine Line Consists of:
| Item | Description | Data |

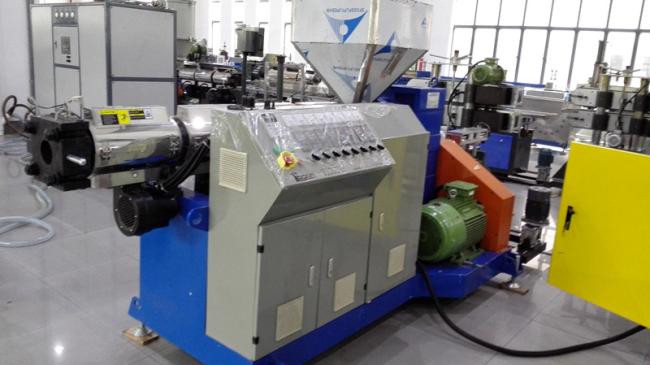

| 1 | Single Screw Extruder | 2 sets |
| Screw and Barrel Material | 38CrMoAlA | |
| Treatment of Screw and Barrel Surface | Nitriding | |
| Heating Mode of Screw Barrel | Cast-aluminium Heating Circles | |
| Cooling Mode of Barrel | Air Blower | |
| Main Motor Power Speed Adjusting | Japan Omron Frequency Inverter | |
| Gearbox Reducer | Hardening Gear Surface, Low Noise | |
| 2 | Die Head | 1 set or According to Customer’s Need |
| Specification | 5-50mm | |
| 3 | Water Cooling Tanks | 2 sets |
| Tank Material | Excellent Stainless Steel | |
| Tank Length | 2000-3000mm | |
| Tank Thickness | 3mm | |
| Water Pump | 2 sets | |
| 4 | Fiber Winding Machine | 1 set |
| Motor | 2.2KW | |
| Speed Adjusting Mode | Japan Omron Inverter | |
| 5 | Hauling off Machine | 2 sets |
| Motor Power | 1.5kw*2 | |
| No.of Belt | 2 *2 sets | |
| Speed Control | Japan Omron Inverter | |

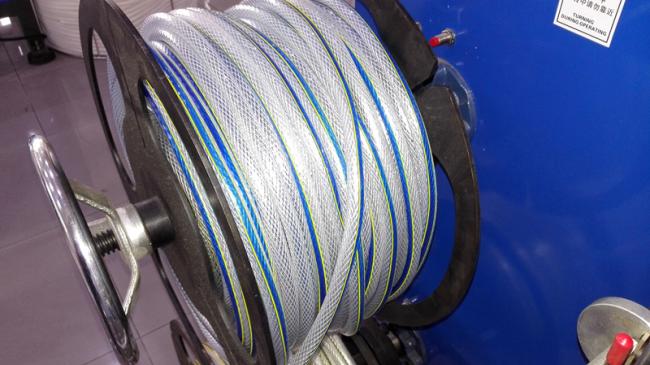

| 5 | Twin Position Coiler | 1 set |
| 6 | Main Electrical Components | Omron, ABB, Schneider, Delix, Simens etc. |
|
Torque Motor 2.5-6KN/m |
||
