180m Small Trailer Mounted Portable Borehole Drilling Rig For Surface Water Well Drilling
180m small trailer mounted portable borehole drilling rig for surface water well drilling JXY180
Application
180m small trailer mounted portable borehole drilling rig adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.
Characteristics
1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
1. Power Supply
It can be driven by either electric motor or diesel engine.

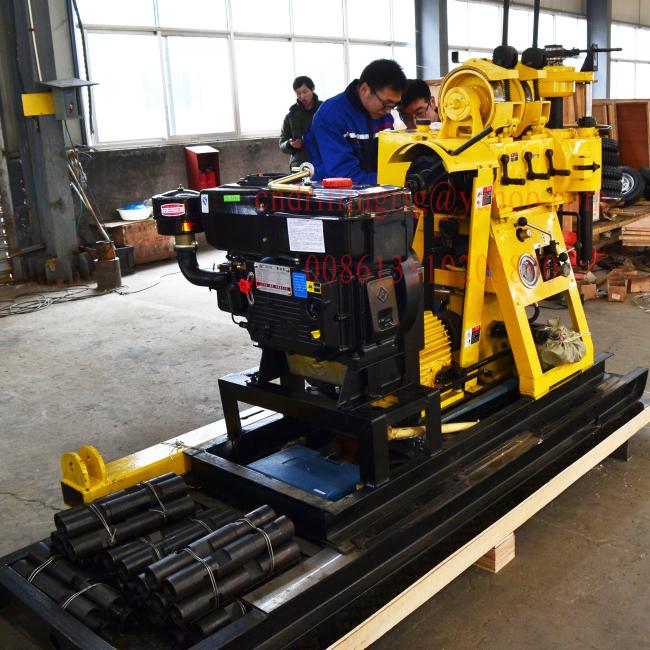

Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
No need to erect drill tower manually, very convenient to use.
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.
| Max.Drilling depth | m | 180 |
| Max.Drilling Dia. | mm | 350 |
| Max.Open hole Dia. | mm | 350 |
| End hole Dia. | mm | 75 |
| Drilling rod | mm | 42,50,60 |
| Drilling angle | 75-90° | |
| Rotary Spindle | ||
| Spindle forward speed | r/min | 64,128,256,550 |
| Spindle stroke | mm | 400 |
| Spindle inner diameter | mm | 62 |
| Spindle lifting capacity | Kg | 6000 |
| Spindle Max.Torque | N/M | 2200 |
| Main Winch (Hydraulic) | ||
| Single line lifting speed | m/s | 17,35,75,151 |
| Tightrope diameter | mm | 12 |
| Hoist single line lifting capacity | Kg | 1800 |
| Roller diameter | mm | 245 |
| Roller cubic measure | m | 35 |
| Tools Winch | ||
| Tightrope diameter | mm | 6 |
| Roller diameter | mm | 140 |
| Roller cubic measure | m | 450 |
| Drilling rig Power(choose one between the following two) | ||
| Diesel engine | kw/hp | 16.13/22 |
| Electric motor(Optional) | KW | 15 |
| Trailer | ||
| Loading Capacity | T | 1 |
| Weight&Size | ||
| Weight | kg | 1300 |
| Dimension | mm | 2800×1650×2100 |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
