151G0006 Low Speed High Torque Motor OMM32 BMM32 Circle Flange
151G0006 Hydraulic Orbital Motor OMM32 BMM32 Circle Flange
Shijiazhuang Hanjiu Technology Co.,Ltd, north of China.We are professional manufacturer produce Hydraulic Orbital Motors.
BMM32 match than OMM32 151G0006
1. Oil Port : G3/8"
2. Drain Port : G1/8"
3. Screw : M6
4. Shaft : 16mm
5. Key : 5x5x16mm
6. Side oil port.
7. Displacement : 32cc
| OMM / BMM | ||||||
| 151G-0040 | 151G-0001 | 151G-0002 | 151G-0003 | 151G-0277 | 151G-0037 | 151G-0211 |
| 151G-0041 | 151G-0004 | 151G-0005 | 151G-0006 | 151G-0279 | 151G-0013 | 151G-0211 |
| 151G-0048 | 151G-0031 | 151G-0032 | 151G-0033 | - | - | - |
| 151G-0049 | 151G-0034 | 151G-0035 | 151G-0036 | - | 151G-0094 | - |
| 151G-0046 | 151G-0024 | 151G-0025 | 151G-0026 | - | - | 151G-0211 |
| 151G-0047 | 151G-0027 | 151G-0028 | 151G-0029 | - | - | 151G-0211 |
HANJIU HYDRAULIC BMM DETAILS
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
BMM Motor Deawing

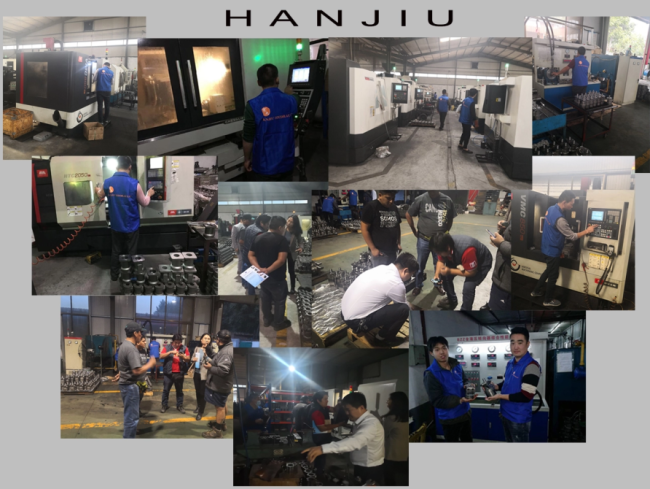

Hanjiu Workshop
Hanjiu Exhibition Booth
