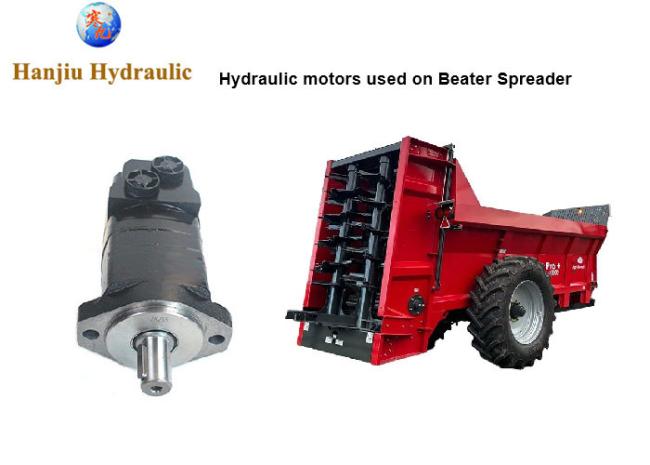

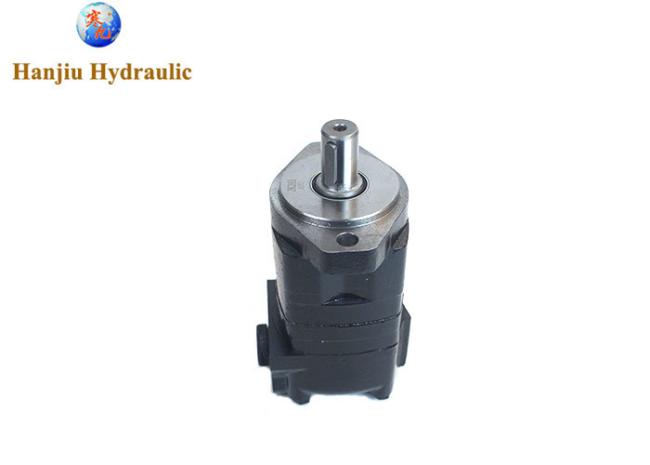

hydraulic low speed high torque motor Charlynn 2000 Series orbit motors used on beater spreaders
hydraulic low speed high torque motor Charlynn 2000 Series orbit motors used on beater spreaders
Quick review:
Model No.: BMK2-65-E2-A-DB
| displacement | 65ml/r |
| speed | 835-990 rpm |
| torque | 185-245nm |
| mounting |
2 Bolt SAE A Flange
|
| shaft |
25 mm key shaft
|
Main specifiction:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) |
65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:
