G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
Price:
18USD
MOQ:
10 pcs
Delivery Time:
15 - 20 working days
Brand:
JCYC
Product Description
G80 Manual Chain Hoist With Alloy Steel Hook
The manual chain hoist is a reliable lifting device that operates based on the lever principle of human force. It converts manual pulling force into lifting power, enabling safe and efficient load lifting and lowering without electricity.
By pulling the hand chain, the hand chain wheel drives the gear system and load chain to move. Under the guidance of the chain wheel, the lifting hook rises or lowers smoothly, completing the lifting operation.
Key Features
- G80 Grade Load Chain - Made of G80 alloy steel with medium-frequency quenching treatment, featuring fine welding, high strength, and excellent wear resistance.
- Heavy-Duty Lifting Hook - Special lifting hook design with strong load-bearing capacity, anti-drop structure, and secure operation.
- Alloy Steel Hook Housing - Forged alloy steel housing with powder-coated surface, offering strong impact resistance and corrosion protection.
- Precision Gear System - Equipped with national standard gears, finely machined for smooth operation, reduced chain jamming, and enhanced durability.
- Smooth & Reliable Operation - Internal components are precisely assembled to ensure smooth lifting, stable performance, and long service life.
Applications
Manual chain hoists are widely used in factories, warehouses, construction sites, shipyards, workshops, and maintenance operations, especially in locations without power supply.
Technical Specifications
| Model | Lifting Capacity(t) | Lifting Height(m) | Running Test(t) | No.of Load Chain | Dia.of Load Chain(mm) | Net Weight(kg) | Packing Size(L*W*H)(cm) |
|---|---|---|---|---|---|---|---|
| HSZ-0.5 | 0.5 | 2.5 | 0.63 | 1 | 5*15 | 8.6 | 24*18*14 |
| HSZ-1 | 1 | 2.5 | 1.25 | 1 | 6*18 | 10 | 24*18*14 |
| HSZ-1.5 | 1.5 | 2.5 | 1.875 | 1 | 8*24 | 15 | 30*20*16 |
| HSZ-2 | 2 | 3 | 2.5 | 2 | 6*18 | 17.5 | 24*18*14 |
| HSZ-3 | 3 | 3 | 3.75 | 2 | 10*30 | 23 | 34*24*16 |
| HSZ-5 | 5 | 3 | 6.25 | 4 | 10*30 | 38 | 39*30*18.5 |
| HSZ-10 | 10 | 3 | 13 | 4 | 10*30 | 68 | 62*50*28 |
| HSZ-20 | 20 | 3 | 25 | 8 | 10*30 | 180 | 70*45*75 |
| HSZ-30 | 30 | 3 | 33 | 12 | 10*30 | 250 | 72*50*68 |

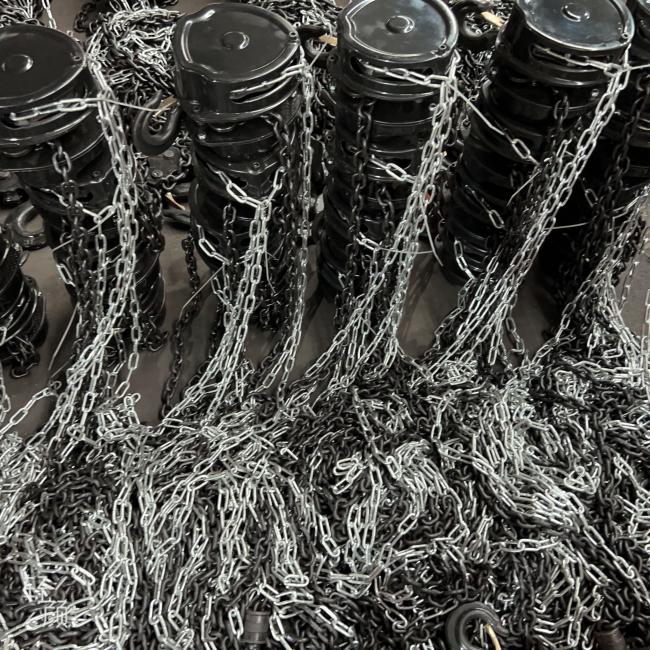

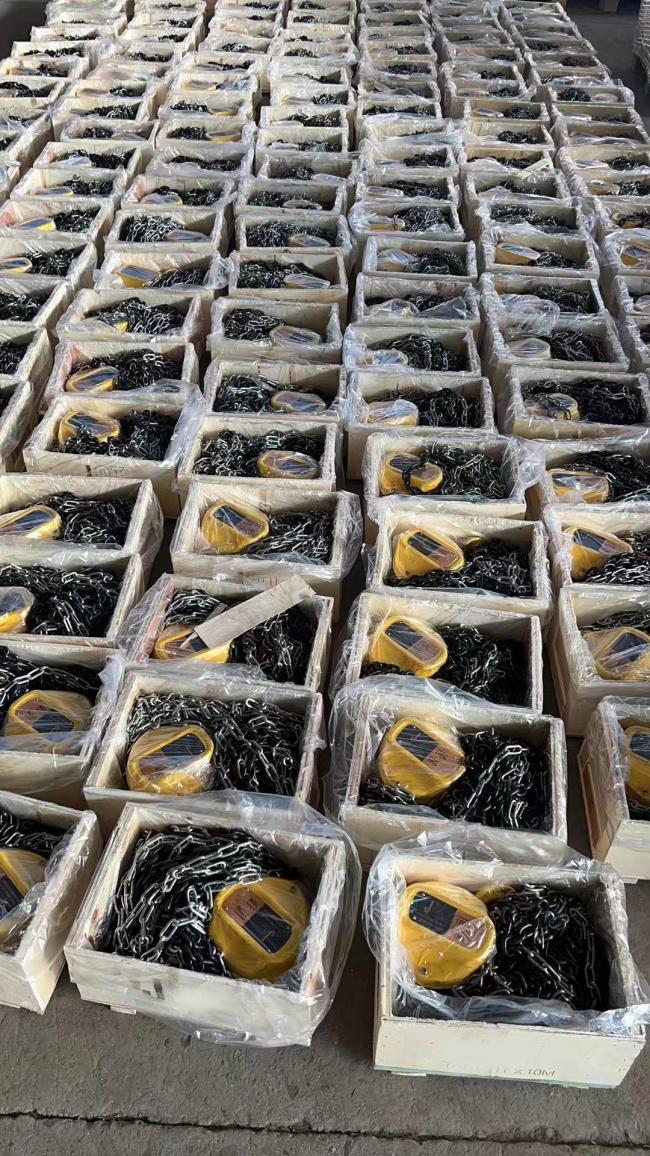

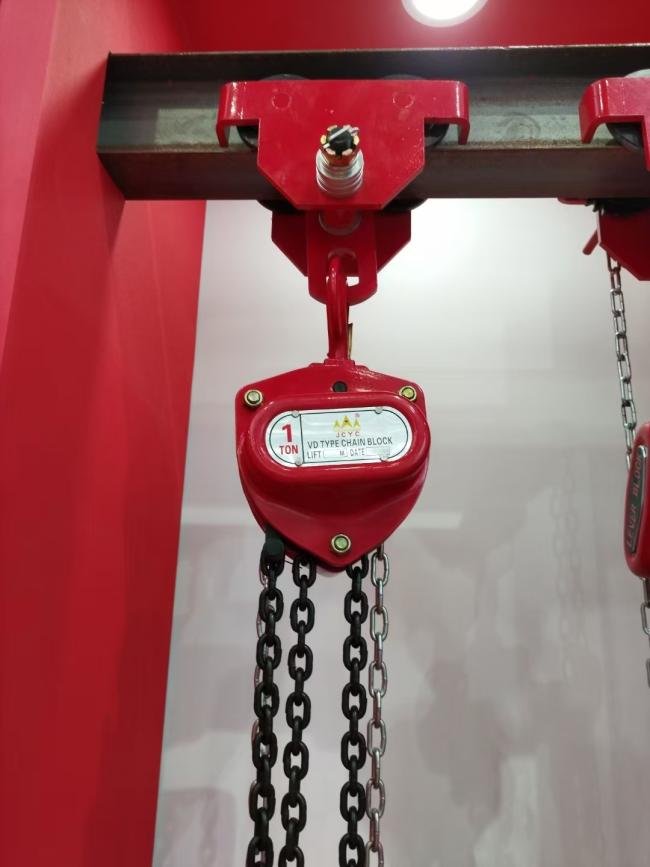

Product Images
