Vertical Plate Clamp of High Quality Carbon Steel with a safety mechanism for Lifting Steel Plates
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
15 working days
Brand:
JCYC
Product Description
CD Vertical Plate Clamp

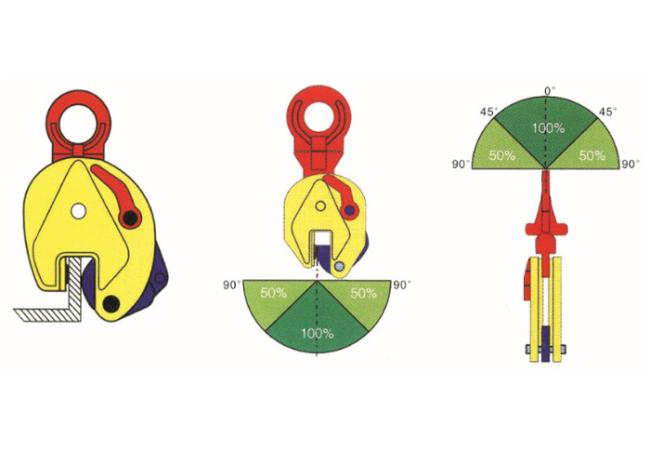

Lifting and transporting steel plates and structures from all positions (Horizontal, Vertical and sidelong)
Articulated lifting shackle (CD type)
Clamps are equipped with a safety mechanism, to prevent the clamp from slipping when lifting force is applied and when as in open position. The clamp is locked in closed as well as in open position.
Manufactured from high quality carbon steel
Do not overload
| Model | WLL (ton) | Jaw opening (mm) | Weight kg |
| 0.8t | 0.8 | 0-15 | 2 |
| 1t | 1 | 0-15 | 4 |
| 1t-B | 1 | 0-20 | 5 |
| 1.6t | 1.6 | 0-20 | 7 |
| 2t | 2 | 0-25 | 8 |
| 3.2t | 3.2 | 0-25 | 15 |
| 3.2t-B | 3.2 | 0-30 | 15 |
| 5t | 5 | 0-30 | 21 |
| 5t-B | 5 | 0-50 | 23 |
| 8t | 8 | 0-45 | 37 |
| 12t | 12 | 0-70 | 50 |
| 16t | 16 | 60-100 | 65 |
| 30t | 30 | 80-220 | 120 |
