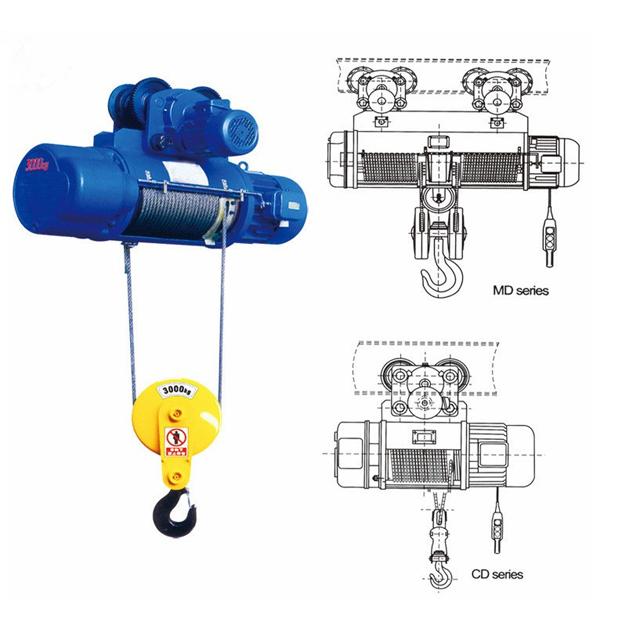

CD MD 5 Ton Electric Wire Rope Hoist For Overhead Crane With Pendant Control

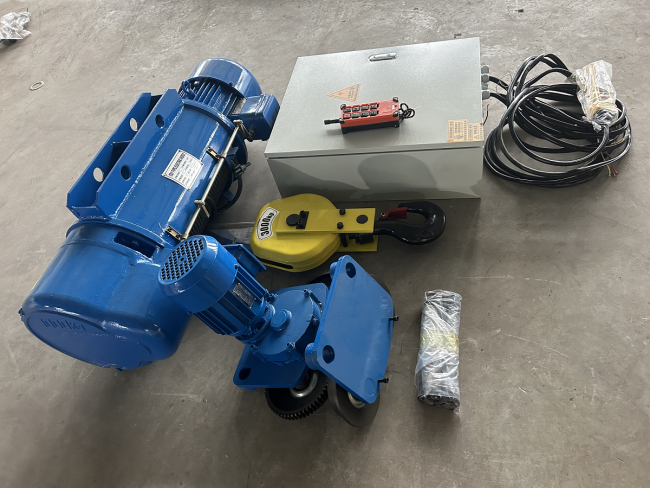

The wire rope electric hoist is a compact and lightweight lifting device featuring a small size, low weight, high component interchangeability, and easy operation. It is mainly used for lifting, pulling, loading, and unloading heavy objects.
It is especially suitable for applications such as inverted welding of oil tanks, installation and relocation of large and medium-sized concrete structures, steel structures, and mechanical equipment. The wire rope electric hoist is widely applied in construction and installation companies, factories, mining sites, civil engineering projects, bridge construction, power engineering, shipbuilding, and automobile manufacturing industries.
| Model | CD1 0.25T | CD1 0.5T | CD1 1T | CD1 2T | CD1 3T | CD1 5T | CD1 10T | CD1 16T | CD1 20T |
|---|---|---|---|---|---|---|---|---|---|
| Capacity T | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lifting height m | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-18 | 9-18 |
| Lifting Speed m/min | 8 | 8 | 8 | 8 | 8 | 8 | 7 | 3.5 | 3.5 |
| Running Speed m/min | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Wire rope type | 6X9 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | 6X37+1 | 6X37+1 |
| I-beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | 45a-63c | 50a-63c |
| Loop track minimum radius m | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 2.5-9 | 3-4.6 | 3-4.6 |
Power supply: 220V-440V, 3phase, 50/60HZ
Working Duty: M3
