0.5t to 10t High Speed Chain Hoist Travel Trolley Steel Yellow With Suspension Hook
Price:
$300-$10000
MOQ:
1 unit
Delivery Time:
10 -15 working days
Brand:
JCYC
Product Description
Travel Trolley Electric Chain Hoist Steel Yellow With Suspension Hook
Features:
SY series electric trolley is one of our perfect products. The unique side guide system makes our trolley drivers smoothly. Frequency control of motor speed is available, which is able to match various working situation and environment.
Characteristics:
Simple structure gear box.
Light self weight motor and well balanced.
Technical Parameters:
| Model |
Capacity ton |
Motor power kw |
Movingpeed m/min |
Net Weight kg |
T mm |
R mm |
W mm |
U mm |
Min. radius of curve m |
|---|---|---|---|---|---|---|---|---|---|
| SY-0.5 | 0.5 | 0.12 | 11/21 | 22 | 231 | 142 | 315 | 212 | 0.7 |
| SY-01 | 1.0 | 0.4 | 11/21 | 47 | 231 | 142 | 315 | 212 | 0.8 |
| SY-02 | 2.0 | 0.4 | 11/21 | 50 | 231 | 142 | 325 | 220 | 0.9 |
| SY-03 | 3.0 | 0.75 | 11/21 | 55 | 231 | 142 | 340 | 250 | 1.0 |
| SY-05 | 5.0 | 0.75 | 11/21 | 80 | 231 | 142 | 400 | 291 | 1.5 |
| SY-075 | 7.5 | 0.75 | 11/21 | 192 | 231 | 142 | 400 | 291 | 1.8 |
| SY-100 | 10 | 0.75 | 11/21 | 140 | 231 | 142 | 500 | 371 |
2.0 |

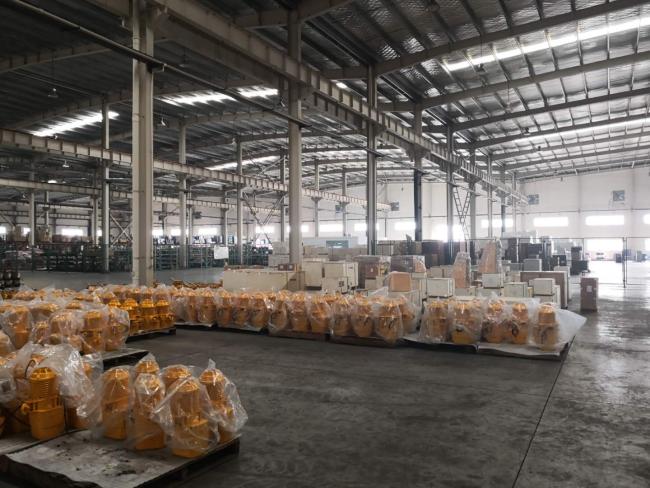

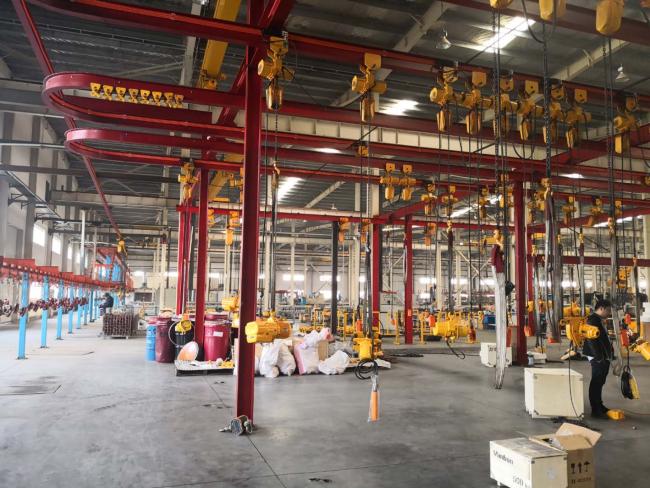

Factory show:
