Detailed Product Description
SH - Type Electric Wire Rope Hoist
It is a newly developed electric hoist on the basis of introducing the advanced German manufacture technologies. The compact design hoist has high strength frame and drum where the planetary gearbox is inside. The hoist has double girder trolley with smooth travelling and smooth stopping. With light self-weight and light wheel pressure, this hoist can completely compare to the same kind of hoists from foreign product. The hoist has overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Competitive Advantages
- Single speed, double speed or variable speed if client request.
- Smooth starting and stopping.
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Overload protection device.
- Corrosion resistance and fatigue resistance
Product Technical Parameters
| Type | Capacity(kg) | Working group | Lifting speed(m/min) | Motor power(kw) | Travelling speed(m/min) | Traveling motor(kw) |
| SH3 2/1A | 1000 | M4 | 8.4 8.4/2.1 | 1.5 1.5/0.4 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH4 2/1A | 2000 | M4 | 7.2 7.2/2.4 | 3 3/1 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH5 2/1A | 3200 | M4 | 7 7/1.6 | 4.5 4.5/1.1 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH6 2/1A | 5000 | M4 | 7.6 7.6/1.8 | 7.5 7.5/2.0 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH7 2/1A | 8000 | M4 | 8 8/2 | 13 13/3.4 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH8 2/1A | 10000 | M4 | 6.4 6.4/1.6 | 13 13/3.4 | 20 20/6.7 | 0.37 0.37/0.12 |
SH Model Hoist (4/1 rope reeving)
| Type | Capacity(kg) | Working group | Lifting speed(m/min) | Motor power(kw) | Travelling speed(m/min) | Traveling motor(kw) |
| SH4 4/1A | 3200 | M4 | 8.4 8.4/2. | 1.5 1.5/0.4 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH5 4/1A | 6300 | M4 | 7.2 7.2/2.4 | 3 3/1 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH6 4/1A | 10000 | M4 | 7 7/1.6 | 4.5 4.5/1.1 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH7 4/1A | 16000 | M4 | 7.6 7.6/1.8 | 7.5 7.5/2.0 | 20 20/6.7 | 0.37 0.37/0.12 |
| SH8 4/1A | 20000 | M4 | 8 8/2 | 13 13/3.4 | 20 20/6.7 | 0.37 0.37/0.12 |

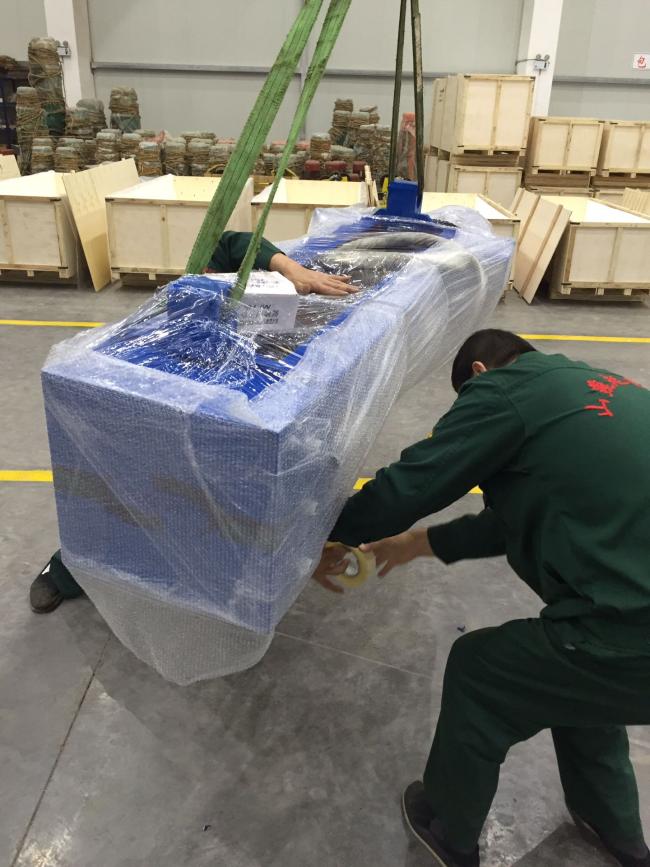

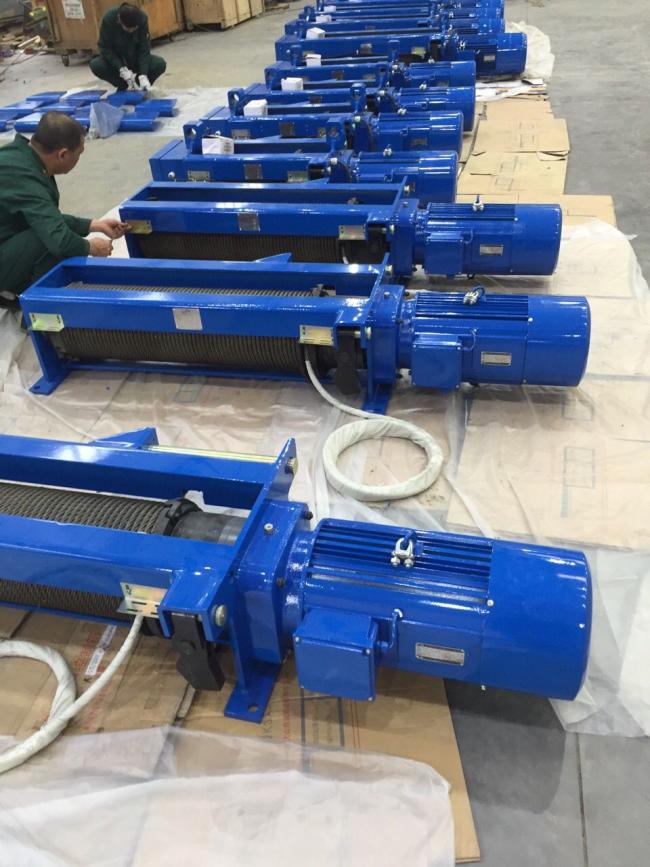

Product show
