Beam Clamp for a Quick And Versatile Rigging Point For Hoisting Equipment, Pulley Block 1 ton - 10 ton
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JCYC
Product Description
YS YC Beam Clamp
Provides a quick and versatile rigging point for hoisting equipment, pulley block or loads
Low-carbon high grade alloy steel

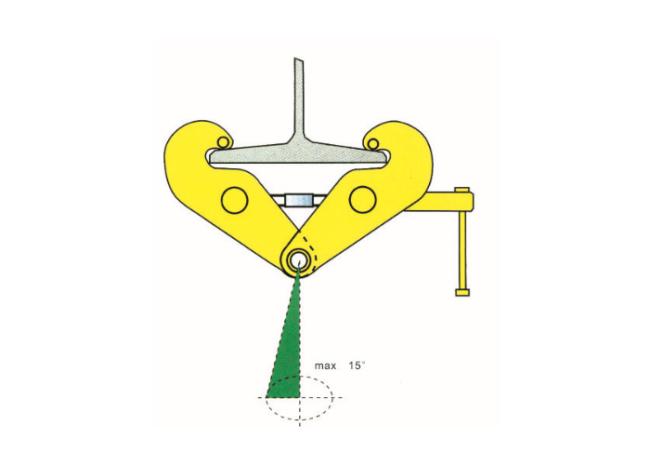

Lock the spindle counter-clockwise and loosen the clamp opening. Clamp the inferior border of I-steel as the picture. Lock the spindle clockwise to clamp tightly
The shackle is designed together with the body
Do not overload
| Model | WLL (ton) | Jaw opening (mm) | Weight kg |
| 1t | 1 | 75-220 | 3.8/4.2 |
| 2t | 2 | 75-220 | 4.6/4.8 |
| 3t | 3 | 80-320 | 9/9.2 |
| 5t | 5 | 80-320 | 11*11.2 |
| 10t | 10 | 80-320 | 16/16.2 |
