Product Description
Customized and Wearable Crane Wheel Meeting The Needs of Various Walking Mechanism
Main Features:
45# steel forging, surface heat treatment hardness of HRC45 ~ 52, the use of HRB bearings, can meet the needs of various walking mechanism, also can be customized according to the requirements of non standard model wheel.

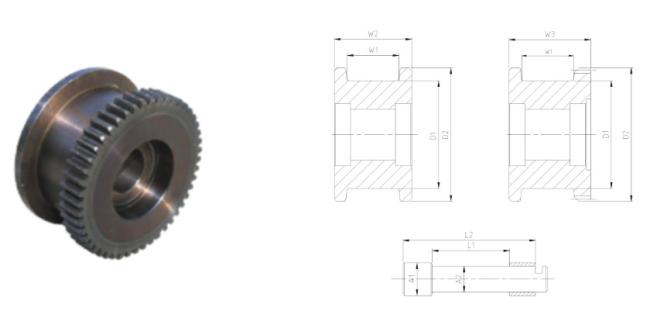

| Model | Load (KN) | Running Motor | Gear modulus | ||||||||
| D1 | D2 | W1 | W2 | W3 | L1 | L2 | A1 | A2 | |||
| W125 | 50 | 125 | 155 | 60 | 90 | 95 | 90 | 154 | 38 | 30 | M3/M3.5 |
| W160 | 100 | 160 | 190 | 70 | 100 | 105 | 100 | 154 | 58 | 50 | M3/M3.5 |
| W200 | 180 | 200 | 230 | 70 | 100 | 105 | 100 | 154 | 58 | 50 | M3/M3.5/M4 |
| W250 | 250 | 250 | 280 | 80 | 110 | 115 | 110 | 204 | 68 | 60 | M3/M3.5/M4 |
| W315 | 350 | 315 | 355 | 90 | 120 | 125 | 120 | 204 | 78 | 70 | M4/M5 |
