380 V Electric Wire Rope Winch Lifting Height 70 m 500 KG / 1000 KG / 2000 KG
Price:
USD negotiate per unit
MOQ:
1 unit
Delivery Time:
10 -15 working days
Brand:
JCYC
Product Description

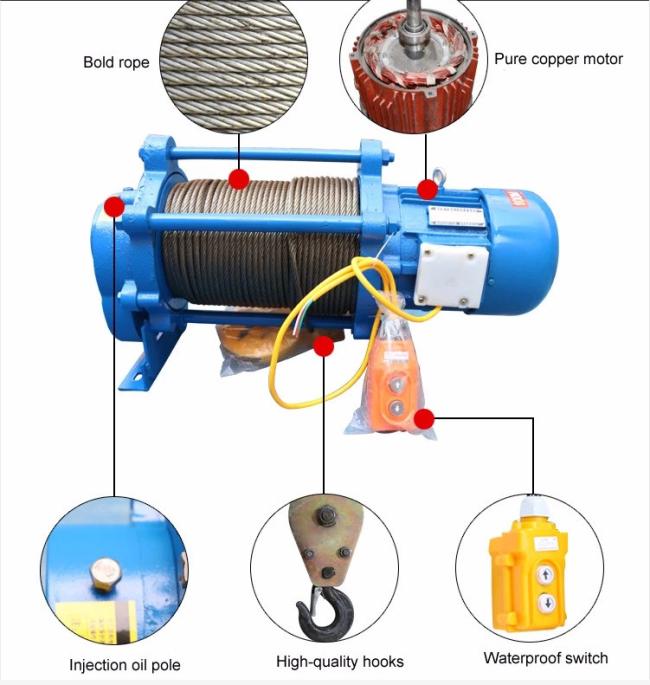

380 V Electric Wire Rope Winch Lifting Height 70 m 500 KG / 1000 KG / 2000 KG
Product Description
KCD Multifunctional Electric Hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3T to 1T, the length of wire rope is from 30M to 60M more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload. Be widely used in warehouse, construction and many kinds of producing-line.
The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.
The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.
Adavantages of KCD electric winch
- Fast installation.
- Convenience in operation.
- Low noise level.
- Fast braking.
- Big rope capacity – to 100 meters (that allows to apply them to raising of freights at repair of high-floor buildings).
- Existence of a rope with a hook in a set.
Application of KCD electric winch:
Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on.
This is the ideal equipment to improve working efficiency and working conditions nowadays.
This is the ideal equipment to improve working efficiency and working conditions nowadays.
Parameters
| Model | KCD-300~600kg | KCD-500~1000kg | KCD-750~1500kg | KCD-1~2T |
| Capacity | 600kg | 1000kg | 1500kg | 2000kg |
| Lifting speed | 7-14m/min | 6-12m/min 8-16m/min | 8-16m/min | 8-16m/min |
| Power | 0.6KW | 1.5KW | 2.0KW | 3.0KW |
| Motor R.P.M | 1380 | 1380 | 1380 | 1380 |
| Voltage | 380v | 380v | 380v | 380v |
| Lifting height | 60M | 1-100M | 100-150M | 100-200M |
| Wire rope type | 5.0*6*19 | D-6*19-6 | 6*19*7.7 | 6*19*10 |
| Weight | 35kg | 50kg | 60kg | 110kg |
Product show
