Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton

Price Negotiable
Price: Negotiable
MOQ: 100 PCS
Delivery Time: 30 working days
Brand: JCYC
Product Description

Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton





G209 Bow Shackle



High strength forged carbon steel die forging

The test of working load limit is 2 times

Breakage test

100% magnetic particle inspection

Breaking load limit is 4 times

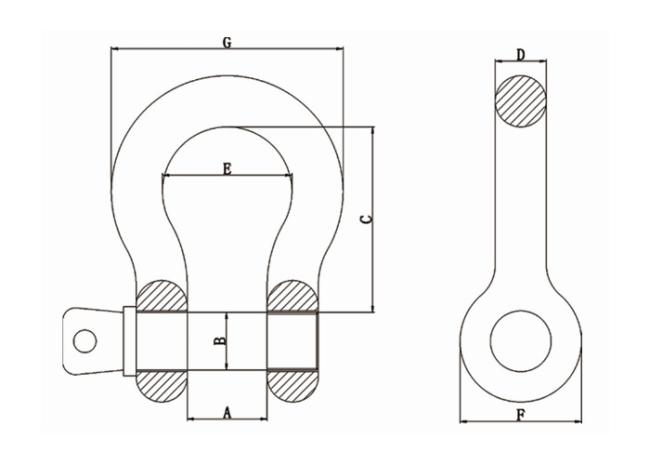

G209 Bow Shackle
WLL. ton A mm B mm C mm D mm E mm F mm G mm
2 20 16 46 12 33 29 58
3.25 27 19 61 16 43 38 75
4.75 32 22 71.5 19 51 46 89
6.5 38 25 84 22 58 53 102
8.5 43 28 95 25.5 68 60.5 119
9.5 48 32 108 29 74 68.5 134
12 50 36 119 32 81 76 145
13.5 55 38 133 35 90 84 160
17 60.5 42 146 38 97 92 173
25 73 50 178 44.5 127 106.5 216
35 83 56 197 51 146 122 248
55 103 70 267 63 181 144.5 307
85 130 80 325 80 210 165 370
120 145 95.5 410 95 215 198 405
