G80 Europe Type Master Link Assembly Forged Main Link and Welded Sub Link Up To 63 ton

Price Negotiable
Price: Negotiable
MOQ: 100 PCS
Delivery Time: 30 working days
Brand: JCYC
Product Description

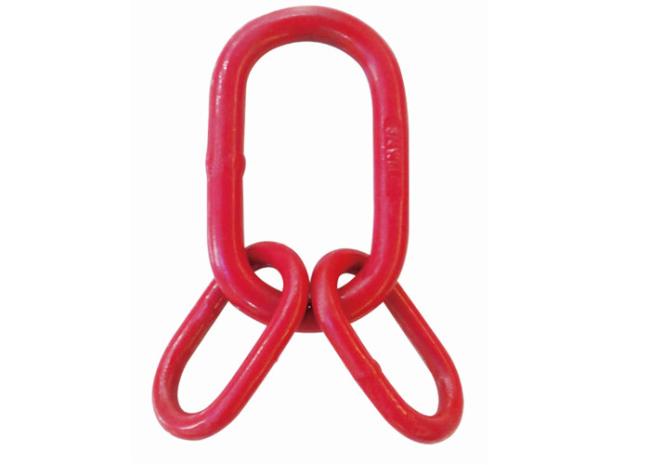

G80 Europe Type Master Link Assembly

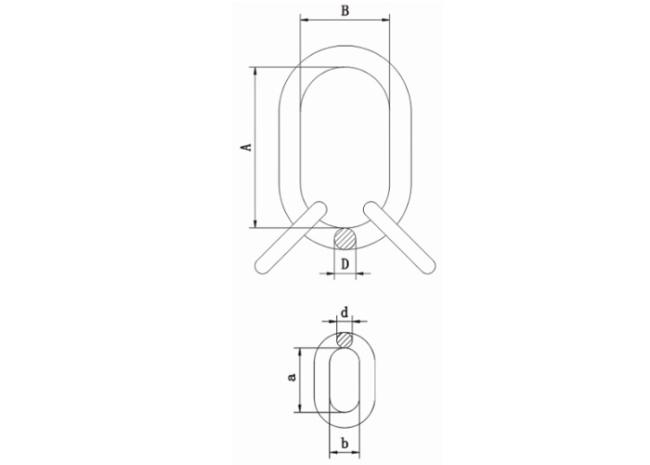

Weight kg WLL ton Dimension mm
A B D a b d
1.18 2.36 135 75 18 54 25 13
1.24 3.15 135 75 18 60 38 13
2.2 4.25 160 90 22 70 34 16
3.4 6.7 180 100 26 85 40 18
6.1 11.2 200 110 32 115 50 22
9.98 17 260 140 36 140 65 26
18.9 21.2 340 180 45 180 100 32
22.6 26.5 350 190 50 180 100 32
25.2 31.5 350 190 50 180 100 36
35.2 45 400 200 56 180 100 40
47 50 430 220 63 180 100 45
66.46 63 460 250 72 200 110 50
