2000kg to 5000kg Pneumatic Hand Pallet Truck With PU Or Nylon Wheel
Price:
Negotiable
MOQ:
10 Pieces
Delivery Time:
15 working days
Brand:
JCYC
Product Description
2000kg to 5000kg Pneumatic Hand Pallet Truck PU wheel or Nylon wheel
Product Description:
2000kg to 5000kg Pneumatic Hand Pallet Truck PU wheel or Nylon wheel
Usage and Features:
Pneumatic hand pallet truck, also called manual hydraulic van, cattle. It is a durable, compact and convenient handing tool with flexible usage and large load capacity.
Besides handing loads, it also has hydraulic device between its chassis and wheels can be easily be pushed into bases.
Using the hydraulic chassis, easily hold up load and move to the destination then landing the load.

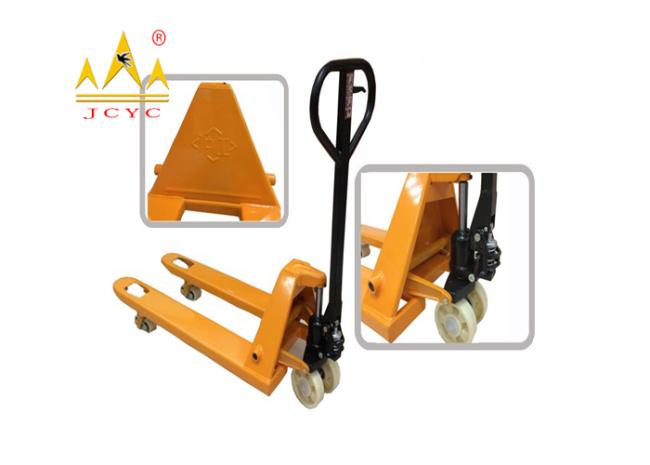

Photo:
Parameter:
| Model | PHT-1.0S(Single Wheel Type) | PHT-2.0 | PHT-2.5 | PHT-3.0 |
| Capacity(kg) | 1000 | 2000 | 2500 | 3000 |
| Fork Dim.(mm) | 160*230*900 | 160*230*1100 | 160*365*1200 | 160*365*1200 |
| Wheel Type | Nylon/Polyurethane | |||
| Load Wheel Size(mm) | 80*95 | 70*80 | 70*80 | 70*80 |
| Steer Wheel Size(mm) | 180*50 | 180*50 | 180*50 | 180*50 |
| Min. Fork Height(mm) | 80 | 80 | 80 | 80 |
| Max. Fork Height(mm) | 200 | 200 | 200 | 200 |
| Overall Length(mm) | 900 | 1100 | 1200 | 1200 |
| Overall Width(mm) | 550 | 550 | 685 | 685 |
| Overall Height(mm) | 1220 | 1220 | 1200 | 1220 |
| Package(mm) | 2300*550*650 | 2300*550*650 | 2400*685*650 | 2400*685*650 |
| N.W/G.W(kg) | 48/57.5 | 63/70 | 68/78 | 70/77 |
