CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist
CE Approved CD Model Customized Wire Rope Used Electric Hoist Price
Product Technical Parameters:
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty |
Lifting Motor |
Running Motor |
||||
|
Powe r(kw) |
R.P.M ( r/min) | Power Supply |
Powe r(kw) |
R. P.M ( r/min) |
Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 |
220 -440V 50/60HZ 3Phase |
0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
Product Brief Introduction:
Model CD wirerope Electric Hoist ia a small-sized lifting equpment , which can be mounted on single beam,overhead ,gantry and Jib cranes, With slight modiflication,it can also be uesd as a winch.it is widly uesd in factories, mines,harbours, warehouses,cargo storeareas and shops,It is essential in raising working efficeiency and improving working conditions.

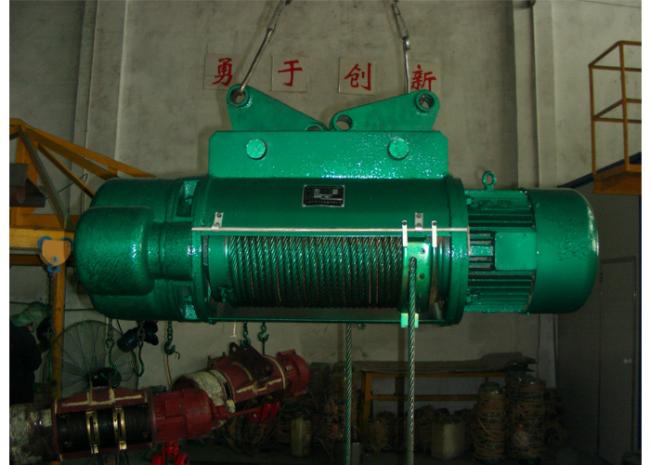

Product Show:
Buying Guides:
Please tell us your specification according the above different drawing, if difficult to you, kindly see the below the basic parameters or tell us your questions. We will choose a suitable products for you.
Or Just tell me where you will use, then it is my turns.
1. Load capacity:___t?
2. Lifting height: ___m?
3. (For crane) Span:____m?
4. Industrial voltage:___V___Hz___Phases?
5. Working Duty:____?
(Working hours ___h/day? Often full load or not? High working frequency or low? )
6. Other special specifications?
