Light Weight Trolley Type Motorized Electric Chain Hoist
Good Price 0.25 - 5 Ton Motorized Trolley Type Hook Type Electric Chain Hoist
Product general introduction:
Electric chain hoist is a light duty crane lifting equipment. The lifting capacity of electric chain hoist can be from 0.5 ton to 50 ton. There are total three types of electric chain hoists for you. Manual trolley electric chain hoist, fixed type electric chain hoist, electric trolley electric chain hoist. Please choose as your working environment and specific requirements.
Product attractive points:
* Aluminum body, which improve anti-corrosion and heat ddissipation. Small volumn and light weight.
* Double clutch, which can provide load limitation (1.25 times of capacity).
* Up and down limitation device.
* Cooling fan motor has unique radiating fin and fan cover can provide rapid heat dissipation of motor, and garrantee the hoist can be operated continuously.
* The hoist employs 10:1 speed ratio motor. The frequency transformer is available at extra cost, which enable stepless speed regulation.
Features and advantages:
1. We are professional with electric chain hoist with rich production experience over 20 years.
2. Electric chain hoist capacity from 500kg to 30T, hook type or trolley type .
3. All the electric chain hoist have CE certification.
4. Electric chain hoist with light but hard shell.
5. G80 chain with good quality.
6. Hook be hot forged with perfect strength, hard to break.
7. Push button, remote control with high quality.
8. Electric chain hoist can be equipped with rain cover, travel limiter, overload limiter.
9. Single speed or dual speed as your required.
10. Three phase electric chain hoist : voltage from 220V -690V , 50/60HZ , 3 phase, and we can also produce single phase chain hoist.
11. Color can be made as your required : blue , yellow , orange , red , etc.
12. OEM available.
Product technical parameters:
Technical Data(single speed)
| Model | SK0.25 | SK0.5 | SK1.0 | SK1.5 | SK2.0-1 | SK2.0-2 | SK2.5 | SK3.0-1 | SK3.0-2 | SK5.0 |
| Capacity(ton) | 0.25 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 | 5.0 |
| Lifting speed(m/min) | 9.2 | 8.3 | 6.3 | 8.5 | 6.9 | 3.2 | 6.6 | 6.6 | 4.2 | 3.3 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation speed(r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3-phase/220V-380V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Spec. of load chain | 4.0mm | 6.3mm | 7.1mm | 10.0mm | 10mm | 7.1mm | 11.2mm | 11.2mm | 10mm | 11.2mm |
Technical Data(frequency transformer)
| Model | SK0.25 | SK0.5 | SK1.0 | SK1.5 | SK2.0-1 | SK2.0-2 | SK2.5 | SK3.0-1 | SK3.0-2 | SK5.0 |
| Capacity(ton) | 0.25 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 | 5.0 |
| Lifting speed(m/min) | 0.92-9.2 | 0.83-8.3 | 0.83-8.3 | 0.85-8.5 | 0.69-6.9 | 0.32-3.2 | 0.66-6.6 | 0.66-6.6 | 0.42-4.2 | 0.33-3.3 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation speed(r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3-phase/220V-380V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Spec. of load chain | 4.0mm | 6.3mm | 7.1mm | 10.0mm | 10mm | 7.1mm | 11.2mm | 11.2mm | 10mm | 11.2mm |

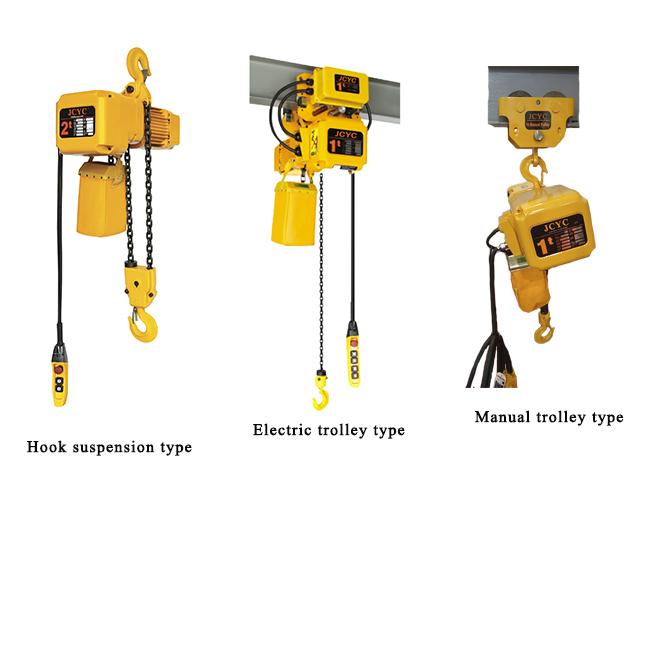

SK chain hoist types for you choose:
