Steel Valve Locking Type Quick Release Pneumatic Connector LSQ-HX In Brass / Steel
LSQ-HX Steel Valve Locking Type Pneumatic couplings in Brass or Steel
Descripton:
LSQ-HX STEEL VALVE LOCKING TYPE PNEUMATIC QUICK COUPLING(STEEL BRASS)
→ Features: Single hand operation, it use difference color to distinguish the medium. Color plated is used for air and water. Red coupling is used for acetylene; green coupling is used for oxygen; blue coupling is used for carbon dioxide. It is widely used in Germany market.
→ Advantages: Single hand operation. Steel valve locking system.
→ Application: Ship manufacturing, repairing and other industry system need to avoid wrong connecting.
→ Working Pressure: 1.0Mpa
→ Working Temperature: -20℃ to +120℃

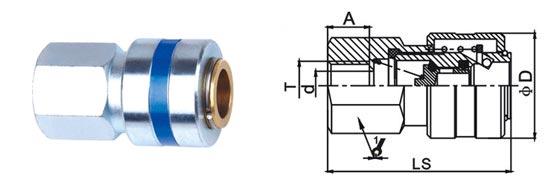

| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-HX-04SF | 64.8 | 36 | 32 | 14 | G1/2 | ￠12 |
| LSQ-HX-06SF | 66 | 36 | 32 | 16 | G3/4 | ￠12 |
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-HX-04SM | 66 | 36 | 32 | 14 | ZG1/2 | ￠12 |
| LSQ-HX-06SM | 67.8 | 36 | 32 | 16 | ZG3/4 | ￠12 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-HX-04SH | 89.5 | 36 | 34 | 38 | 16 | ￠12 |
| LSQ-HX-06SH | 89.5 | 36 | 34 | 38 | 21 | ￠12 |
| PARTNO. | LP | A | C | CP | ￠T | d |
| LSQ-HX-03PH | 74 | 26 | 37 | 19.5 | 14 | ￠9 |
| LSQ-HX-04PH | 75 | 26 | 38 | 19.5 | 16 | ￠10 |
| LSQ-HX-06PH | 75 | 26 | 38 | 24 | 21 | ￠10 |
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-HX-O2-SM | 52.4 | 30.4 | 24 | 14 | G1/2 | ￠8.3 |
| PARTNO. | LP | C | CP | A | ￠T | d |
| LSQ-HX-O2-PH | 56 | 20.5 | ￠16 | 30 | 9 | ￠5 |
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-HX-KR-SF | 52 | 30.2 | 24 | 12 | G1/4 | ￠8.3 |
| PARTNO. | LP | C | CP | A | ￠T | d |
| LSQ-HX-KR-PH | 56 | 20.5 | ￠16 | 30 | 9 | ￠5 |
| PARTNO. | LP | ￠D | HEX1 | A | T | d |
| LSQ-HX-CO2-SF | 52 | 30.2 | 24 | 12 | G1/4 | ￠8.3 |
| PARTNO. | LS | C | CP | A | ￠T | d |
| LSQ-HX-CO2-PH | 56 | 20.5 | ￠16 | 30 | 9 | ￠5 |
