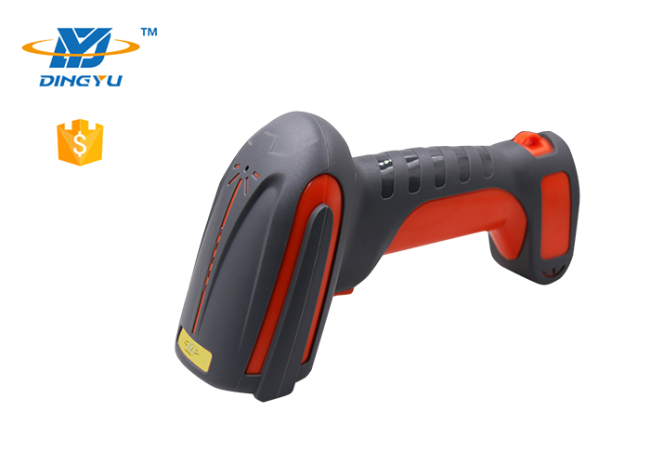

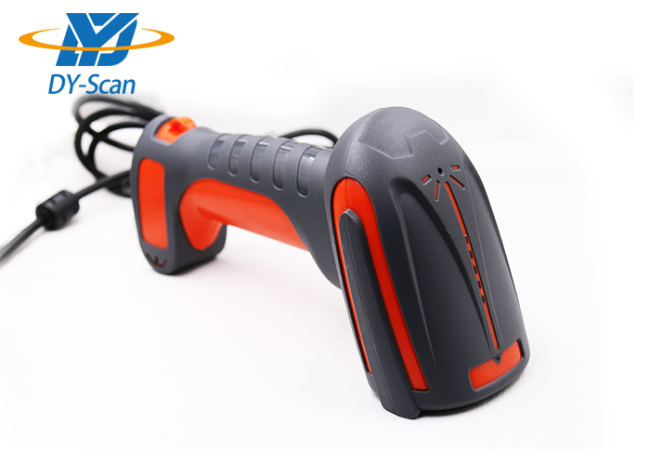

Industrial Grade IP65 DPM 2D wired Handheld Barcode Scanner DS6800-HD
Industrial Grade IP65 DPM 2D wired Handheld Barcode Scanner DS6800-HD
Product Description
DS6800 is a high-performance industrial 2D barcode scanner with leading CMOS image recognition technology.

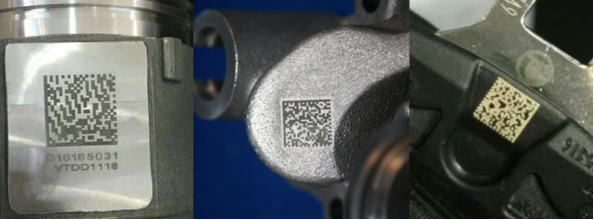

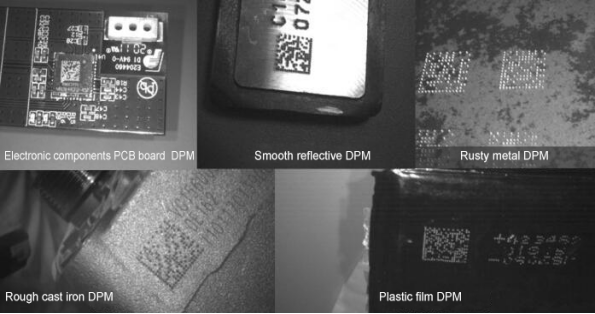

It can easily read the paper, goods, screen and other media barcodes. Mainly for DPM barcodes.
Widely used in industry, outdoors.
Features
☆ Ergonomic Industrial design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ IP65, easy to be used in complex environment.
☆ Support multiple systems and languages, secondary environment.
Application
▅ Courier ▅ Industry
| Scan Type | Cmos |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Color | Red and grey |
| Reading precision | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25cm/s |
| Depth of field | 3mil:70~200mm,13mil:45~320mm |
| Scan Mode | Manual ,Auto Sense |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60° | |
| Roll: ±360° | |
| Skew: ±70° | |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
| Weight | ≈290g(USb) |
| Dimension | L184mm * W94mm * H93mm |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Interface Type | USB ,RS232 |
| Power Supply | DC 5V@279mA(work) |
