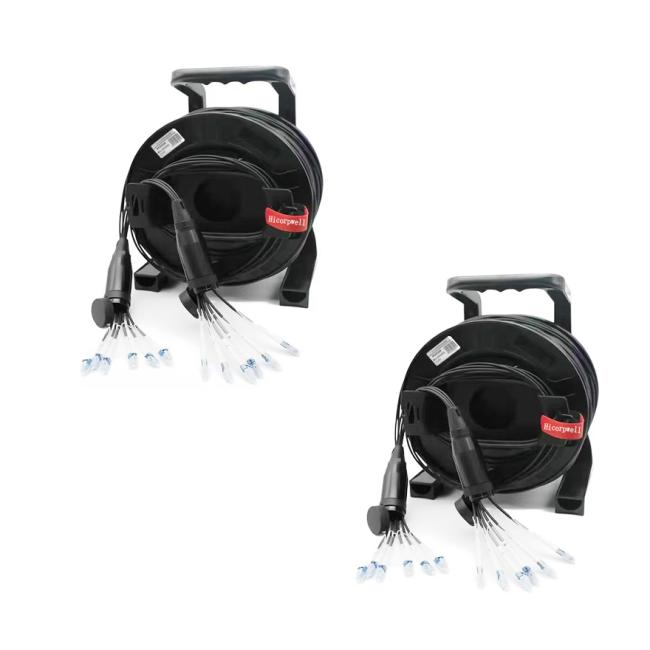

SC/UPC-SC/UPC Single-Mode Field TPU 200m Cable Cord Customized SC UPC 200M TPU Insulation

Price Negotiable

Price: negotiation

MOQ: 1sets

Delivery Time: Negotiable

Brand: HICORPWELL

Product Description

SC/UPC-SC/UPC Single-Mode Field TPU 200m Cable Cord

Product Overview

Customized SC UPC 200M TPU Insulation patch cord designed for reliable signal routing between devices. This single-mode fiber optic cable features TPU insulation and is available in various connector types including FC, SC, LC, and ST with PC, UPC, and APC ferrule options.

Connector Types

LC: Small form-factor connector, half the size of SC

ST: Quick release bayonet style connector with twist lock coupling

FC: Fixed connection with threaded barrel housing

SC: General purpose push/pull style connector with square design

Ferrule Types

PC (Physical Contact): Curved end faces eliminate air gap

UPC (Ultra Physical Contact): Extended polishing for superior surface finish

APC (Angled Physical Contact): 8-degree angled end faces for tight connection

Key Features

Complies with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005 standards
Low insertion loss, high return loss
High density connection, easy operation
High credibility and stability
Excellent repeatability and exchangeability

Applications

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication systems
Telecommunications

Performance Specifications

Parameter	Unit	LC/SC/ST/FC
SM(9/125)	MM(50/125 or 62.5/125)	PC/UPC/APC/PC
Insertion Loss	dB	≤0.3 / ≤0.2 / ≤0.3 / ≤0.2
Return Loss	dB	≥45 / ≥50 / ≥60 / ≥35
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85

Product Parameters

Parameter	Specification
Connector End A/B	LC, SC, FC, ST or specified
Cable Diameter	4.0mm / 7.0mm / 8.0mm
Jacket Material	TPU
Fiber Core	4, 8, 12 or specified
Mode	Singlemode / Multimode
Operating Wavelength	1310/1550nm (SM) / 850/1310nm (MM)
Polishment	UPC / APC / UPC
Insertion Loss (Max)	1.5dB / 1.0dB
Return Loss (Min)	50dB / 35dB
Mechanical Features	Plug: ≤1000N (main cable) Socket: ≤100N (branch cables)
Grade	IP68
Mating Time	500 Min
Durability (Max)	0.2dB
Repeatability (Max)	0.5dB
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
