SM SC APC Fiber Optic Components Sinplex Fiber Optic Adapter Auto Shutter
Price:
negotiation
MOQ:
200 pcs
Delivery Time:
Negotiable
Brand:
HICORPWELL
Product Description

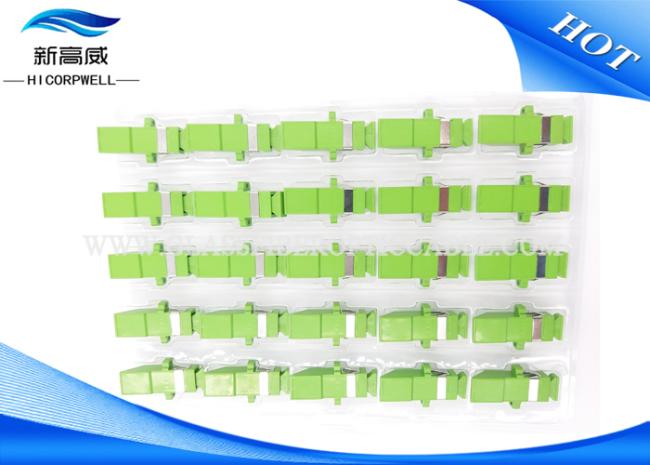

SM SC APC Sinplex Fiber Optic Adaptor Auto Shutter Fiber Optic Components
A ceramic sleeve is supplied to ensure a high precision alignment. The housing is available in different
colors with options for flange or flangeless body, metal clips or inbuilt clips.
A protective cap is provided at each end of the adaptor with the same color as the adaptor.
Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs.
Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs.
The housing of the Adaptors of the last generation has a reference key for the right position coupling and
zirconia or phosphorus bronze split sleeve for high alignment.
we could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc.
we could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc.
Hybrid is also available.
Our adaptors design, material and manufacturing process assure long life and high repeatability of
Our adaptors design, material and manufacturing process assure long life and high repeatability of
optical performances even for different brand connectors mating.
Precisely external size make it easier to install, flexible and convenient use.
| Item | Insertion Loss | Mechanical resistance | Repeatability | Operating Temperature |
| SM/PC | ≤0.2dB | 200-600g | 0.2dB(1000times) | -40°C~+80°C |
| SM/APC | ≤0.2dB | 200-600g | 0.2dB(1000times) | -40°C~+80°C |
| MM/PC | ≤0.3dB | 200-600g | 0.3dB(1000times) | -40°C~+80°C |
|
Parameter
|
Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| insertion loss | dB | ≤0.2 | ≤0.1 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Interchangeability | dB | ≤0.2 | |||
|
Repeatability
|
dB | ≤0.2 | |||
| Mechanical endurance | Time | >1000 | |||
|
Operating temperature
|
°C | -40~75 | |||
| Storage temperature | °C | -45~85 | |||
