FTTH 42U Stand Cabinet Fiber Optic Patch Box , Network Fiber Optic Cable Patch Panel

Price Negotiable

Price: negotiation

MOQ: 1set

Delivery Time: Negotiable

Brand: HICORPWELL

Product Description

FTTH 42 Stand Cabinet Fiber Termination Kits Network

Network rack server cabinet is a cost effective solution for network and communication installations.

It is designed for installers that require quick and easy installation.

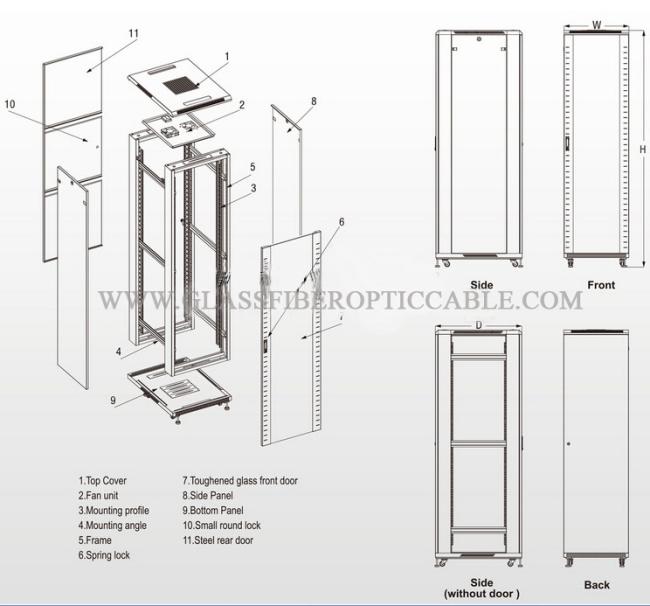

Supplied fully assembled with Top, Base, removable side panels, front door, rear door and pre-installed fans, this cabinet provides an easy alternative for customers who know exactly what they require.

Castor wheels provide mobility for quick deployment.

Cable Access is available via roof or base through removable gland plates.

A wide range of 19" accessories is available to compliment the cabinet.

Suitable: For Network Communications and Security equipment.

Product Features:

Item name	Hot-sale serve rack network cabinet

Product Description	1) Model size & shape & design: As your requirements.
	2) material is cold rolled steel with powder coating surface treatment
	3) removable side panels, side locks are optional, easy installing and maintaining,
	user can add the cable fixtures accordingly.
	4) customized to customers' requirements, with doors, sides and top panel
Manufacturing Process	1) Design for Manufacture> CNC Laser Cutting, Punching> Folding & Bending> Welding &
	Dressing> CNC Machining, Drilling> Powder Coating> Assembling painted components
	2) Surface treatment: spray-paint, Silk Screen, Power Coating, Polish &Brush,
	Sand –blast, zinc/nickel/chrome plating, hot-galvanization etc.

Network rack server cabinet Specifications:

Description	Width	Depth	High	Carton weight
18U	600 mm	600 mm	1000 mm	48 KG
22U	600 mm	600 mm	1200 mm	58 KG
27U	600 mm	600 mm	1400 mm	69 KG
32U	600 mm	600 mm	1600 mm	80 KG
37U	600 mm	600 mm	1800 mm	91 KG
37U	600 mm	800 mm	1800 mm	107 KG
37U	800 mm	960 mm	1800 mm	122 KG
37U	800 mm	600 mm	1800 mm	107 KG
37U	800 mm	800 mm	1800 mm	133 KG
37U	800 mm	960 mm	1800 mm	153 KG
42U	600 mm	600 mm	2000 mm	101KG
42U	600 mm	800 mm	2000 mm	119 KG
42U	600 mm	960 mm	2000 mm	133 KG
42U	800 mm	600 mm	2000 mm	119 KG
42U	800 mm	800 mm	2000 mm	140 KG
42U	800 mm	960 mm	2000 mm	161 KG
47U	600 mm	600 mm	2200 mm	111 KG
47U	600 mm	800 mm	2200 mm	133 KG
47U	600 mm	960 mm	2200 mm	140 KG
47U	800 mm	600 mm	2200 mm	129 KG
47U	800 mm	800 mm	2200 mm	150 KG
47U	800 mm	960 mm	2200 mm	170 KG
