Blue Paintcoat FO Single Mode Fiber Spool , SMF G652D 250um Bare Fiber Optic Cable

Price Negotiable

Price: negotiation

MOQ: 10KM

Delivery Time: Negotiable

Brand: HICORPWELL

Product Description

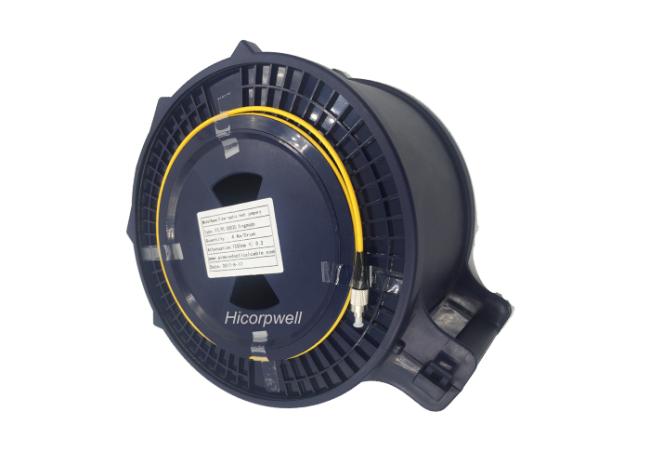

OTDR Dummy Single mode SMF G652D 250um Bare Optical Fiber Spool OTDR Cable

An OTDR dummy fiber, which connects the OTDR to the link-under-test,

discloses the insertion loss and reflectance of the near-end connection.

A fiber ring serves as both a launch cable and a receive cable.

OTDR Dummy fiber is used in conjunction with an OTDR to measure complete link loss of a fiber.

They are also known as pulse suppressor cables, launch cords, launch leads, receive cables

or fiber rings.

Fiber Single mode; G.652 fiber.

Connectors can be added as per your request.

Standard length: 2km/roll

Cable length can be customized.

Specifications:

Transmission Characteristics
	SM (1310/1550 nm)	50/125 (850/1300 nm)	62.5/125 (850/1300nm)
Max Attenuation (dB/km)	0.4/0.30	3.5/1.5	3.5/1.5
Typical Attenuation (dB/km)	0.35/0.21	3.1/1.0	3.0/1.0
Mini Bandwidth (Mhz.km)	--	400/400	160/500

Note: The OTDR Launch cables can be added with certain connectors,

Such as FC-FC,SC-SC,FC-SC ST-ST etc.

Please pay attention to the connector type when you order.

Part No.	Description
Fiber-ROLL-SM10	SM G652D, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-SM20	SM G652D, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-MM10	MM (62.5/125um or 50/125um), 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-MM20	MM (62.5/125um or 50/125um), 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-SM710	SM G657A, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-SM720	SM G657A, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-OM310	OM3, 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-OM320	OM3, 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
