Gyxtw 6 12 24 Core Glass Fiber Optic Cable Single Mode Armored Cooper Cable
Gyxtw 6 12 24 Core Single Mode Armored Glass Optical Fiber Cooper Cable
GYXTW fiber optic cable is a type of fiber cable that is widely used in aerial application. This type of fiber cable has been praised due to its exceptional performance in Long Distance Symmetric role.
As a matter of fact, GYXTW fiber optic cable plays an important role in the telecommunication industry and it’s highly recommended by many technicians.
Description:
GYXTW fiber optic cable is commonly available from 2 fiber cores to 24 fiber cores. Consequently, it has two types which includes; single mode type and multimode types. Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
Features:
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
Applications:
These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
Laying modes: Aerial & Conduit
Rural communication, local trunk line, CATV & computer networks system
Long-distance communication and LAN

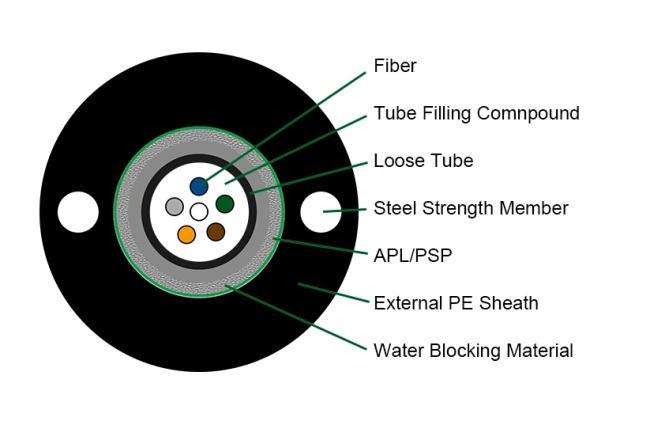

Structure configurations
Waterproofing layer between the steel tape and cable core.
Double-sided PE corrugated steel tape with PE sheath
Parallel double steel wire as strengthening member
| Technical Specifications: | ||||||||
| Fiber | Nominal | Nominal | Min. Bending | Min. Tensile | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Radius(mm) | Strength(N) | Load(N/100mm) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | Static | Static | Short Term | Long Term | Short Term | Long Term | |
| 2~6 | 10.1 | 104 | 110 | 220 | 1500 | 600 | 1000 | 300 |
| 8~12 | 10.6 | 114 | 110 | 220 | 1500 | 600 | 1000 | 300 |
| 14~24 | 11.2 | 128 | 120 | 240 | 1500 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, but not a supplement to the
contract. Please contact our sales people for more detailed information.
