10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
Price:
negotiation
MOQ:
500W
Delivery Time:
25 working days
Brand:
HICORPWELL
Product Description

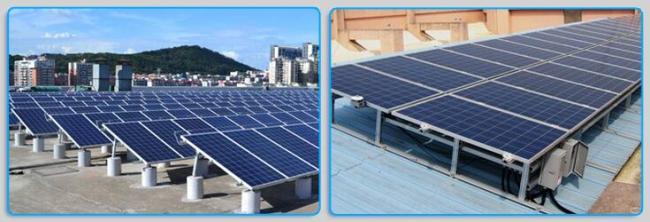

10KW Home Solar Power Roof Mounting System Residential Solar Smart Power Application
Product Features:
1. Off-grid & On-Grid system are mainly used for big solar power system users who wants to sell electricity to the government.
2. There has to be existing grid network. There is no need of battery bank for this system.
3. All the electricity generated from the solar panel will be supplied to the user’s house or
business as a priority, and the excess electricity will be fed back into the electric utility grid.
Specifications:
| Ref No. | OFF Grid --10KW | |
| System Basic Information | Solar Panel Rated Output Power | 10KW |
| Suitable for Max Daily Power Consumption | 30KWH | |
| Rated Output AC Capacity | 8KW | |
| Solar panel | ||
| Type | Crystalline Silicon PV Module, A-class | 40pcs |
| Max Power | 250W | |
| Vmp | 30.5V | |
| Size | 1655*992*45mm | |
| Weight | 22.5kg/pc | |
| 25 years power output guarantee (Note: 2pcs panels connect in series) | ||
| Controller | ||
| Voltage | 12V/24V | 2pc |
| Current | 80A | |
| Warranty | 1 year | |
| PWM high-efficiency charging controller, LED display, intelligent control; Temperature compensation, various protections. | ||
| Circuit Breaker | Used for protection of controller, installed between PV array combiner and controller | 2pc |
| Inverter | ||
| Input Voltage | DC48V | 2set |
| Output Voltage | AC220V/110V 1-phase | |
| Frequency | 50/60Hz | |
| Efficiency | 90% | |
| Note: This inverter provides grid power switch and battery charging functions. | ||
| Battery | ||
| Capacities | 12V/200AH per piece | 24 pcs |
| Service life | 5 to 6 years | |
| Warranty | 3 years | |
| Solar panel rack | Flat-roof type mounting rack, steel material, anti-rust treatment(Other types of racks can be customized as per client's requirement) | 2 set |
| Cable |
100m |
|
