All Dielectric Self Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Cable
All-Dielectric Self-Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Fiber Cable
Aerial optical cables along electrical power lines-Family specification for ADSS(All Dielectric Self Supported) Optical cables.
This specification is applicable to high voltage transmission system, also applies to long-span erection of ADSS cable communication
lines in high-elevation thunderstrom area.
This standard stipulates ADSS cable product classifications, type, model, structure, cable fiber technical parameters andtext method,
and the requirements of packing and storage. This specification covers the classification,type,construction,technical parameter,packaging and storage requirements.
Description

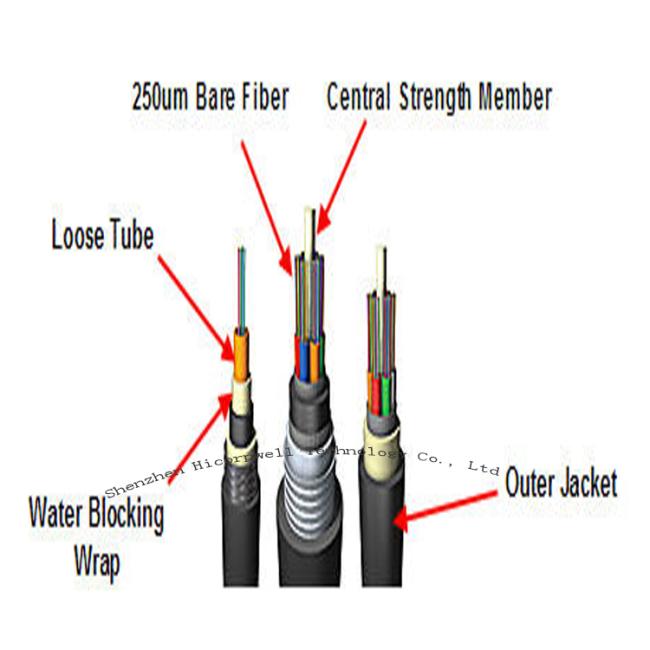

This product has excellent mechanical stability and environmental performance; there is no metallic material in the ADSS cable,
it has excellentperformances such as resistance to lightning stroke and electromagnetic interference.
This ADSS cable is light weight, high tensile strength and lng-span erection crossing the river and canyons.
Fiber optic technology requirements,No Items Test Requirement Test Standard

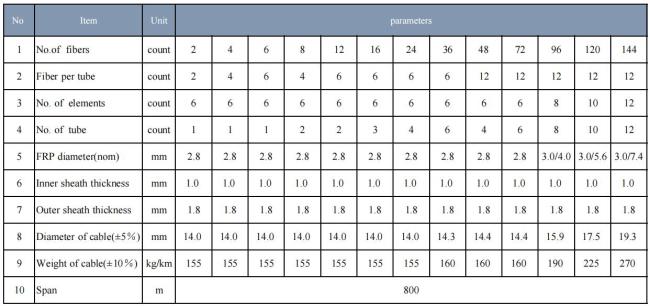

Cable Specifiation :
| Core non-circularity | ≤ 6% |
| Cladding diameter | 125.0±0.7μm |
| Core/Cladding concentricity error | ≤ 0.6μm |
| Cladding non-circularity | ≤ 1.0% |
| Coating diameter | 245±10μm |
| Cladding/Coating concentricity error | ≤ 12μm |
| Attenuation coefficient | 1310nm≤0.35dB/km |
| Attenuation coefficient | 1550nm≤0.21dB/km |
| ITU-T G.652 | |
| Zero dispersion slope | ≤ 0.092ps/(nm2·km) |
| Zero dispersion wavelength | 1300~1324nm |
| Polarization dispersion | ≤ 0.20 ps/√km |
| Mode field diameter 1310nm: | 9.0±0.4μm |
| cut-off wavelength | 1170~1330nm |
| 1288~1339nm | ≤3.4ps(nm·km) |
| Chromatic dispersion coefficient | 1550nm≤18 ps/(nm·km) |
| 1625nm |
≤22 ps/(nm·km) |
