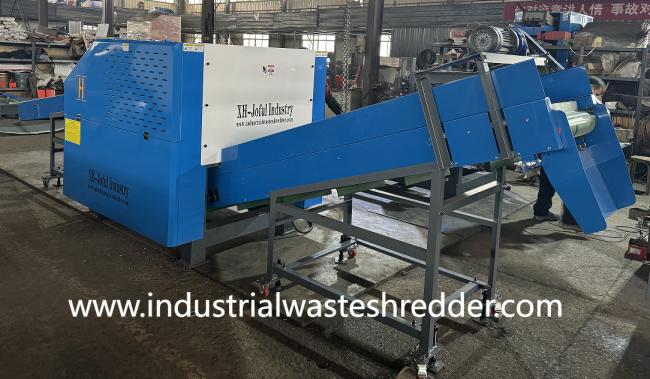

Industrial Waste Non Woven Fabric Shredder
The machine is specially design for soft materials cutting & crushing, mainly include textile scraps,plastic films , packing bags, yarns, fibers,monofilament type materials, sheep wool,palm fiber,papers,rock wool ,glass wool ect
The non-woven fabrics shredding machine in the video is working as pre shredder,very quick working efficiency and power saving,,next step is for open machine to produce fiber.
It can also working as pre shredder for PP big bags, long plastic films , yarns,monofilament,next connect with crusher machine.
Both input conveyor and output conveyor is easy move,easy installation and also more conveient for blade sharping
There're different models base on different demands
| Main Technical data | 800F | 1200F | 1600F | 2400F |
| Blade length | 400mm | 600mm | 800mm | 1200mm |
| Rotary blade qty | 6 | 6 | 6 | 6 |
| Cutting motor | 7.5KW | 18.5KW | 22KW | 22KW+22KW |
| Input & output conveyor size | 330*1400 | 520*3000 | 720*3000 | 1100*3000 |
| Sieve mesh adjustable range | 3mm-50mm | 3mm-120mm | 3mm-140mm | 3mm-140mm |
| Production output fabric / 120mm sieve mesh |
300-500kg/ hour base on 50mm mesh |
750-1100kg/hr | 900-1500kg /hr | 1200-1800kg/hr |
| Production output Plastic films / 120mm sieve mesh |
200-300kg / hour base on 50mm mesh |
550-750kg/hr | 700-1000kg/hr | 1000-1300kg/hr |
| Main Technical data | 800C | 1200B | 1600B | 2400B |
| Blade length | 400mm | 600mm | 800mm | 1200mm |
| Rotary blade qty | 4 | 4 | 4 | 4 |
| Cutting motor | 7.5KW | 18.5KW | 22KW | 22KW+22KW |
| Input & output conveyor size | 330*1400 | 520*3000 | 720*3000 | 1100*3000 |
| Sieve mesh | No mesh structure | No mesh structure | No mesh structure | No mesh structure |
| Production output | * Output is much more higher ( than the machine with sieve mesh ) * Discharge are strips ( instead of the flakes from the machine with sieve mesh ) |
|||
