Custom Stainless Steel Sheet Metal Fabrication Laser Cutting Bending Welding Service 304 316L

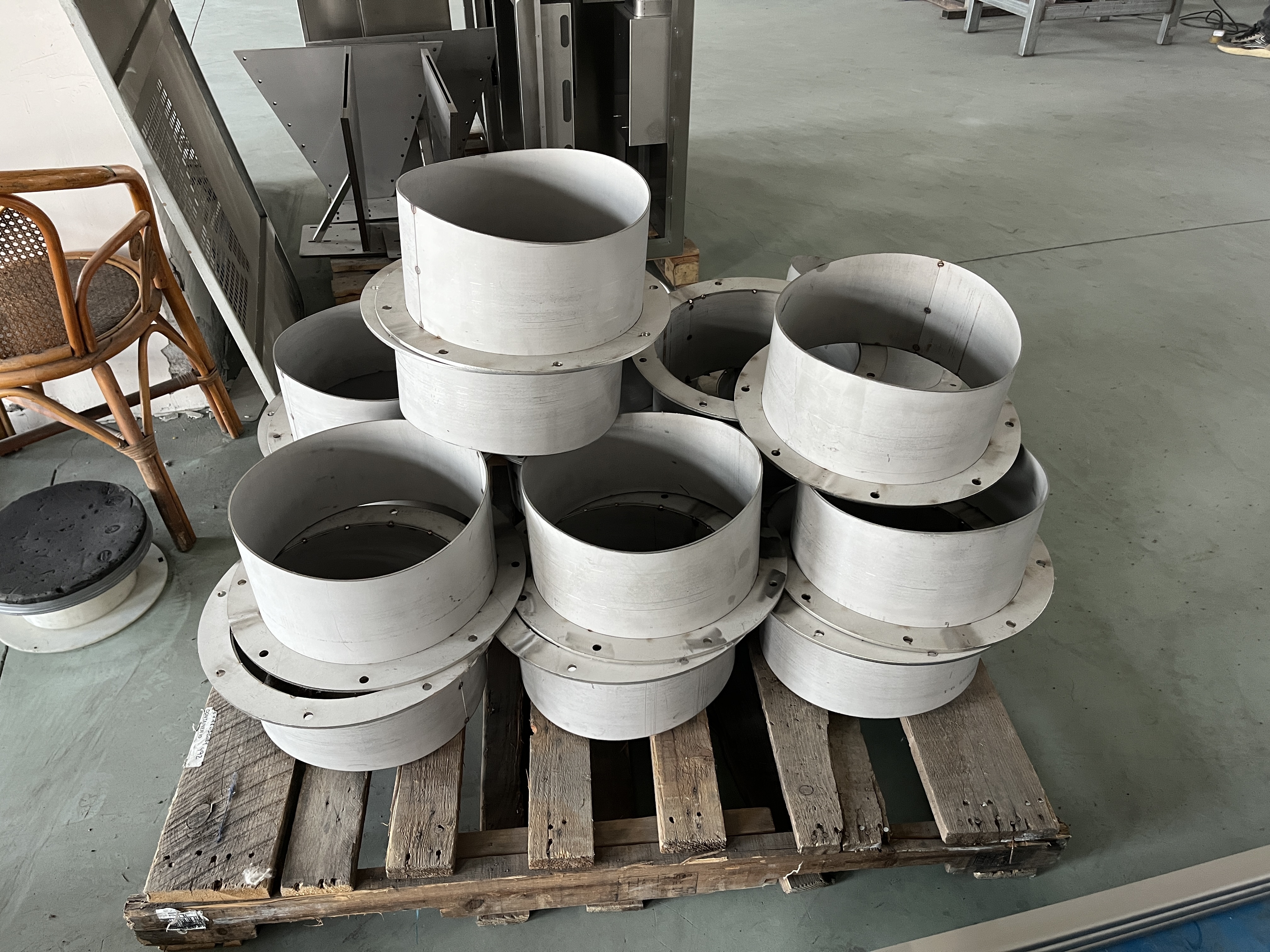

Custom Stainless Steel Sheet Metal Fabrication Service
We are a Hangzhou-based manufacturer established in 2009, running laser cutting, CNC bending, welding, machining and surface finishing lines under one roof. Our fabrication workshop supplies custom stainless steel sheet metal parts and enclosures to machinery builders, waste recycling equipment brands and industrial OEMs in more than 30 countries. Send your drawing and we will quote within 12 hours.
Fabrication Capabilities
- Laser cutting: 6000W fiber laser, up to 12mm carbon steel and 8mm stainless steel, cutting tolerance +/-0.1mm
- CNC bending: 100T and 160T press brakes with 3200mm bending length, +/-0.2mm angle accuracy
- Welding: TIG, MIG and spot welding, full-penetration seams polished and pickled on request
- Machining: CNC milling and turning for bosses, bushings and threaded inserts
- Surface finish: brushed, mirror polish, bead blasting, powder coating, electropolishing and passivation
Material Options
| Grade | Thickness | Typical Use |
|---|---|---|
| 304 / 304L | 0.5 - 6.0mm | General enclosures, guards, covers |
| 316 / 316L | 0.5 - 6.0mm | Marine, chemical and food-grade equipment |
| 201 / 430 | 0.5 - 4.0mm | Cost-controlled panels and brackets |
| Carbon steel / Aluminum | 0.8 - 10mm | Structural frames and mounting plates |
Process Flow
- Drawing review and DFM feedback within 12 hours
- Material cutting list and nesting optimization to reduce waste
- Laser cutting and deburring
- CNC bending with first-article inspection
- Welding, grinding and seam treatment
- Surface finishing and assembly
- Incoming, in-process and final inspection with dimensional report
- Protective packing and export shipment
Quality Control
- ISO 9001:2015 certified workshop
- CMM and caliper dimensional reports supplied with every batch
- Weld seam penetration and dye-penetrant checks for pressure parts
- Salt spray test for coated parts, 48 to 500 hours as required
- First article approval before mass production
Applications
Shredder housings and hoppers, machine guards, electrical control cabinets, stainless steel work tables, food processing frames, water treatment tanks, architectural cladding, filter housings and custom brackets.
Why Work With Us
- 16 years of fabrication experience, 50 to 80 skilled workers
- Drawing-to-sample in 7 to 10 days, batch production in 15 to 25 days
- Small batch friendly: prototype from 1 piece, volume orders from 100 pieces
- English speaking engineering team, DFM suggestions to cut your cost
- Export packing proven on 40 HC containers to Europe, North America and Australia
FAQ
Q: What file formats do you accept?
STEP, STP, IGS, DWG, DXF, PDF and clear hand sketches with dimensions.
Q: Can you work from a sample?
Yes. Send a physical sample and we will reverse engineer the drawing for your approval.
Q: How do you protect parts during shipping?
Each part is wrapped in pearl wool, separated by bubble film and packed in a plywood case or reinforced carton.
Request A Quote
Send your drawing, material grade, thickness and order quantity to our engineering team. We reply with a costed quotation and DFM notes within 12 working hours.
