Industrial Waste Wood Pallet Shredder 45 KW With Magnetic Separation System
Industrial Solid Waste Shredder , Wood Pallet Shredder , plastic Waste Shredder , Bottles Shredder , Drum Shredder , E waste shredder
Description of Industrial Solid Waste Shredder , Wood Pallet Shredder
Joful MSW Shredder is the commonly waste shredder and can satisfy different industries' recycling needs. It is used to shred many kinds of waste materials,such as municipal solid waste,MSW, drum,electronic waste, hard plastic, metal, wood, rubber, packing barrel, plastic pallet, etc. After shredding, the material can be recycled directly or keep reducing the size.
For shredding wood pallets,we recommend double shaft shredder or four shaft shredder . Both of them can support one piece after one piece pallet feeding and shredding & many pieces together feeding and shredding. The claw number, diameter and the thickness of the blade is decided to the crushing material and the discharging size , the machine capacity is decided to the different crushing material and the discharging size and different capacity demand can be customizable. Normally for shredding wood pallets we also equipped shredder with magnetic separation system as there are metal inside of pallets like nail. Those staff should be take out from the shredded wood so it can be recycling use no potential problem.
Typical Application
| Municipal solid waste, pvc bags,shopping bags,plastic film,medical waste, kitchen waste, vegetable market waste, etc |
| Wood, construction model, tree root, garden waste, herb waste. |
| non-woven & woven bag, paper making factory waste, shoemaking factory waste,Garment factory waste. |
| Aluminum Cans, iron barrel, metal shell, computer, hard disk,tire, circuit board, etc. |
|
Beverage bottle, cosmetic bottle, medicine bottle, jar etc. |
Technical data (one standard small model for early reference, we customize base on different demands)
| Model | S-800 |
| Motor Power | 45 KW / customizable |
| Rotor Blade Qty | 34+6 pcs / depends ) |
| Stationary Blade Qty | 2 pcs / (depends ) |
| Blade Material | Cr12 Mov/SKDII/D2 ... |
| Rotating Speed | 75 rpm |
| Main Rotor Dia | 400mm / depends |
| Max. Dia of Pipe | 630mm / depends |
| Feeding Size | 680*680 mm / depends |
| Chamber Size | 800*800 mm / depends |
| Hydraulic Motor Power | 3 kw / depends |
| Cylinder Stroke | 800mm / depends |
| Machine Size / mm | 2500*1980*2250 / depends |
| Machine Weight | 4000 kgs / depends |

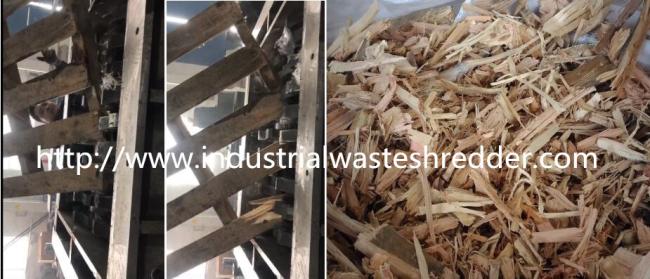

Waste pallet shredder machine photos
Quick details
1. Lead time - 48 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation
- a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
- b. If necessary we also support abroad installation
4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
