Textile Non Woven Jeans 8P Rag Cutting Machine For Soft Material

Price Negotiable
Price: Discussable
MOQ: 1 set
Delivery Time: 5-30 working days after deposit arrived
Brand: Joful
Product Description

Fabric/Non Woven Cutting Shredder Rotary Blades Power Saving With Sharpener Device Easy Maintenance



Efficiency & Low Power Consumption & Easy Maintenance

  • Joful J series cutting machine is desined especially for almost all kinds soft type materials, with annual more than 700 sets finished machine export to all over the world
  • We have already apply patent for our design, we are the only supply in China supply such machine
  • Different from regular single/double/four shaft shredder in the market, Joful J series cutting machine working principle is to cut the materials with its sharp blades, not to tear up the waste, so it's much power saving compare and cost saving
  • Adopt with rotating twisted knife design, with application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife, continuous high-speed shear, just like a big scissors
  • We equipped every set finish machine with automatic sharpening device, just sharpening the blades according t our suggestions will be ok, on other special tips needed, very easy for maintenance, and the cutting blades can be replaceable, ensure the machine long lifespan

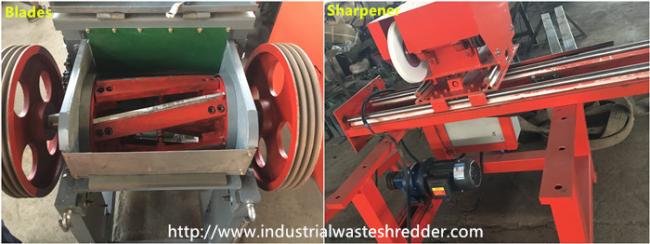

  • Blades and sharpening device samples



Description About The Textile Fabric Cutting Machine

Machine Components

Normally four parts: Main machine, Input bilt, Output belt, Blades sharpening device, Customized mesh screen



Can also add other parts per client's request, such like: Dusty removal device, Fan device, Metal detector, Opener machine device, sorting machine, spare blades etc





Main Datas

cutting motor 8P motor, 5.5/7.5/15/18.5/22/44/66KW
transport motor 4P Inverter motor, adjustable speed
blades lifespan generally 12-24 months
blades materials alloy tool steel
machine materials carbon teel
power distribution cabinet independent distribution cabinet
moving knife Alloy tool steel,4/6/8 pieces knife
fix knife Alloy tool steel,2 pieces knife
conveyor width 330/520/720/1100mm, effective width
conveyor length 1400/3000/4000mm, or as your request
machine design rotary twisted knife
machine maintenance with sharpening device
machine color yellow, orange, red, blue, milk, customizable

Application
Materials that can cut&crush
( almost including all soft materials)
Discharge size range Capacity range
Bags / plastic films / strips Jumbo bags / PP bags / woven & non-woven bags / plastic bags (PP PE PVC ect.. as long as they are soft bags)
plastic films
From few Millimeter up to tens centimeter long from several hundred / hr up to several thousand / hour
depends on discharge size request
Textile scraps quilting edges ,threads, yarns..
Clothes (Underwear scrap,jeans,towel,cap scraps,non-woven fabrics,cotton fabrics ..)
Shoes Scraps etc..
Fibers glass fiber, fiber yarn, Coconut fiber,Polypropylene fiber ,polyester fiber, Silk fiber .. etc..
Foams Sponge/mattress scraps /flexible PU foam / EPS foam / XPS foam /Rock wool foam / glass wool foam / EPE foam / Cotton , silk cotton etc..
Leather /Carpet / Papers / books /cardboard / plant straw / fish net / ropes etc


Contact Us

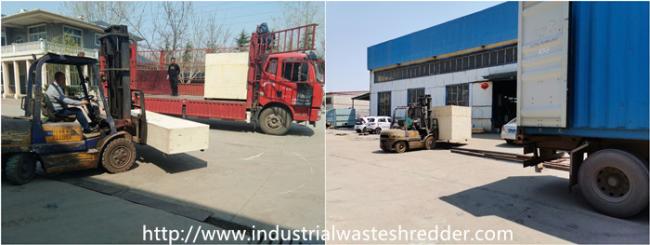

Wooden Box Package Samples

Textile Fabric Cutting Samples

If any interested, please feel free to contact us
