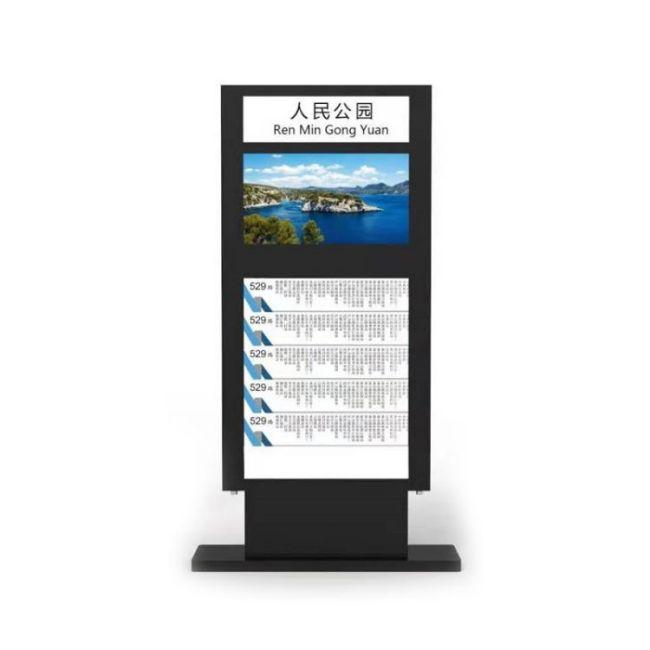

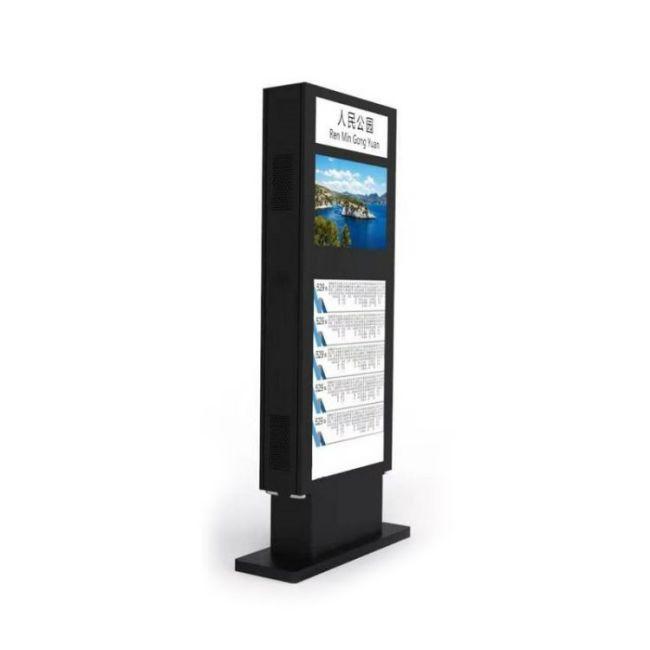

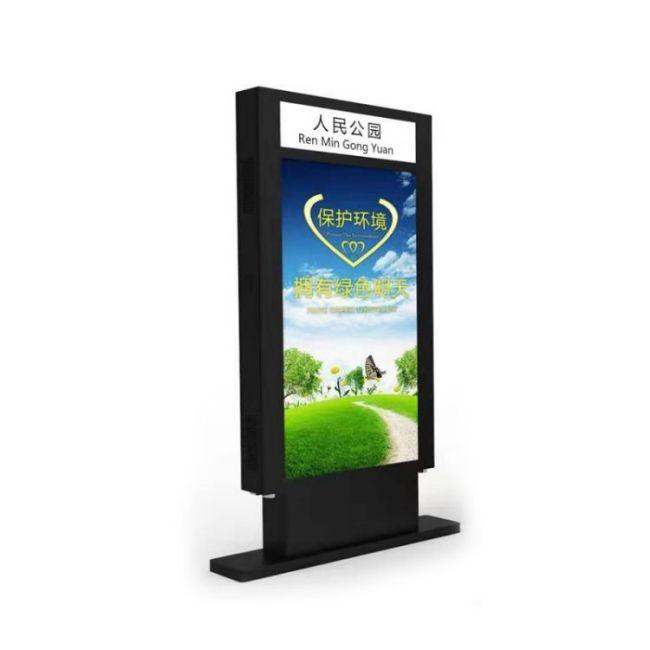

Bus station outdoor lcd touch screen ultra thin advertising display 32 inch floor stand digital signage
Bus station outdoor lcd touch screen ultra thin advertising display 32 inch floor stand digital signage
Automatic Brightness Adjustment: The signage has automatic brightness adjustment, ensuring optimal visibility in different lighting conditions, including non-glare mild light during cloudy days and nights.
Long Service Life: The signage is designed for long-term use, with a claimed service life of over 60,000 hours of uninterrupted operation.
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 32 inch |
| Display area | 697mm(H) X 392mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1080 X 1920 | |
| Display color | 16.7M | |
| Brightness | 1000 cd/㎡ ~ 1500cd/㎡ | |
| Contrast Ratio | 2000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz |
Ultra-Wide Viewing Angle: The signage offers a wide viewing angle of 178° in all directions, maximizing the visibility and reach of advertising promotions.
Intelligent Ventilation and Heat Dissipation: The signage utilizes an intelligent direct ventilation (forced air cooling) heat dissipation system, ensuring stable performance and long service life with low energy consumption.
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month |
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
