15.6-inch industrial tablet computer with capacitive touch Linux: a powerful assistant for CNC operators of large machinery.
In the modern manufacturing industry, CNC technology has become a key tool for improving production efficiency and product quality. Especially when operating large machinery, a reliable control system is particularly important. This article will introduce a product specifically designed for such application scenarios—the 15.6-inch industrial tablet computer with capacitive touch Linux, and explore how it helps operators enhance work efficiency.
15.6-inch Industrial Tablet Computer with Capacitive Touch Linux - Precise Control of Large Machinery
For operators of large machinery, having a reliable control terminal is crucial. The 15.6-inch Industrial Tablet Computer with Capacitive Touch Linux offers operators an extremely intuitive operating experience with its large high-definition screen, responsive touch technology, and stable Linux operating system. This tablet computer is not only easy to use but also withstands high-intensity use in industrial environments, ensuring stability during prolonged operation.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||

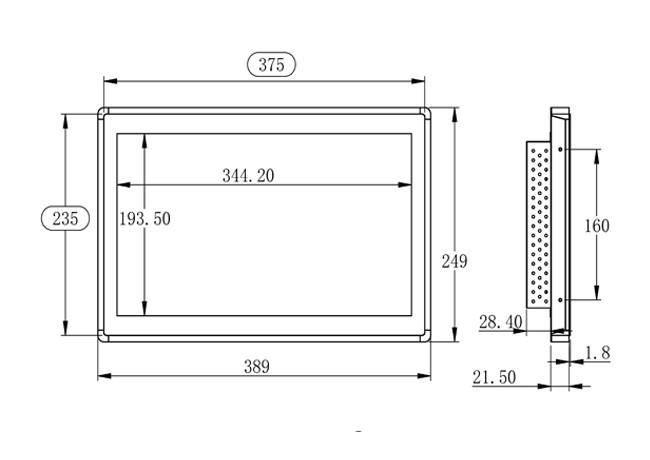

| Display Area | 344.2 mm.(Height) X 193.50(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Audio Parameters (External Speaker Option) |
Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Onboard Interface | HDMI Input | 1 | ||
| VGA Input | 1 | |||
| DVI Input | 1 | |||
| USB Type B or any desired USB Type | 1 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Accessories | Power Cord Length | 1.5m | ||
| HDMI Cable Length | 2m | |||
| USB-A to USB-B Cable Length | 1.5m | |||
| Stereo Speaker Size with Connector | 99*45*20mm | |||
| Stereo Speaker Length | 1.5m | |||
| Package Size | Device Dimensions | 389 X 249 X 51.7mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 44.2 X 30 X 10.5Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
Efficient Management and Maintenance - 15.6-inch Capacitive Touch Industrial Control Machine Tablet Computer
The 15.6-inch capacitive touch industrial control tablet computer, with its powerful hardware configuration and flexible software platform, supports various industrial applications and simplifies the management processes of CNC machine tools. The Linux operating system, with its open-source characteristics, allows users to customize the software environment according to specific needs, thereby better serving particular production tasks. In addition, the device also supports remote monitoring and fault diagnosis, which helps quickly locate issues and take measures to resolve them, reducing downtime and ensuring production continuity.
The 15.6-inch industrial tablet computer with capacitive touch Linux, known for its outstanding performance and highly customizable features, has become the ideal choice for operators of large machinery CNC. Whether improving operational precision or enhancing equipment management efficiency, this tablet has demonstrated its immense value in the field of industrial automation.
