Clear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil Film
70'' Inch 10 Points Clear Transparent Nano Multi Touch Film Interactive Projection Foil Interactive Touch
ZXT Interactive Touch Foils are supplied with an electrostatic cling layer which makes
them suitable for both permanent and temporary installations. The new improved touch foil have an
upgraded driver with USB connection which has been digitally signed off by Microsoft (EMC approved)
and are UL, FCC and CE approved (RoHS compliant). The Interactive Foils are combined with a screen
technology to create an interactive touch screen display. Our main market for the Touch foils is 'thru-glass'
interactive displays for store window applications, where the foil is combined with our range of projection
films and high brightness LCD TFT screens. Such as interactive shop windows, trade shows, museums,
meeting rooms and much more.
Standard Size of Interactive Touch Foil:
17 inch to 120inch (4: 3 and 16: 9 ratio). All standard sizes are being shipped to dealers worldwide within
one week (when in stock). Each touch foil comes with USB connector with cable Or RS232 Cable, driver
software, installation video's and user guide.
Types of Interactive Touch Foil

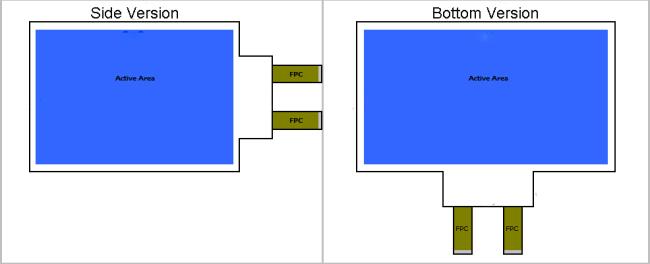

| Touch foil type for paste | Tail version | Touch controller | Foil ratio | Touch points |
| Water-adhesive (removable) | Base or bottom | USB interface | 16:9 (17”-120”) | 2,4,10,20,40 points |
| Adhesive (permernent) | Side or short | USB interface | 4:3 (40”-120”) |
Advantages of Interactive Touch Foil
1. Super-thin,and transparent appearance
2. High definition, Stable touch
3. Well-positioned ,and support multi touch points
4. Through the glass or other objects to touch just like gesture
5. The size can be customized
Applications of Interactive Touch Foil

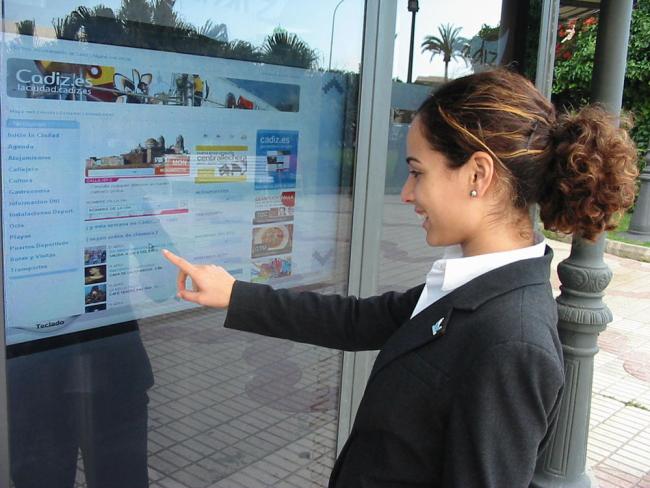

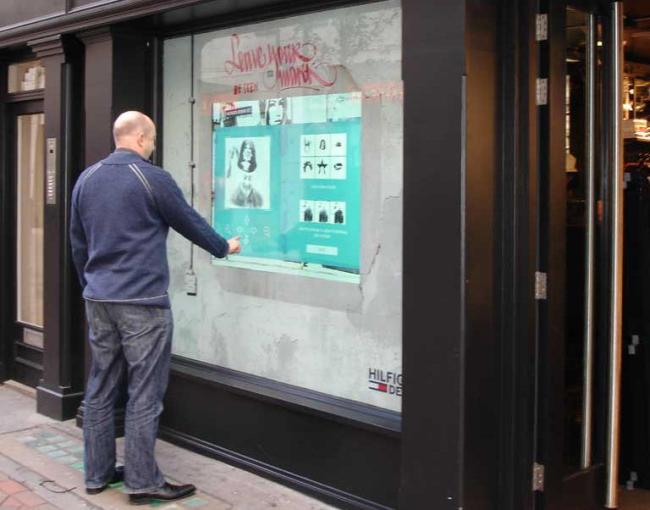

Suitable for Store window displays,

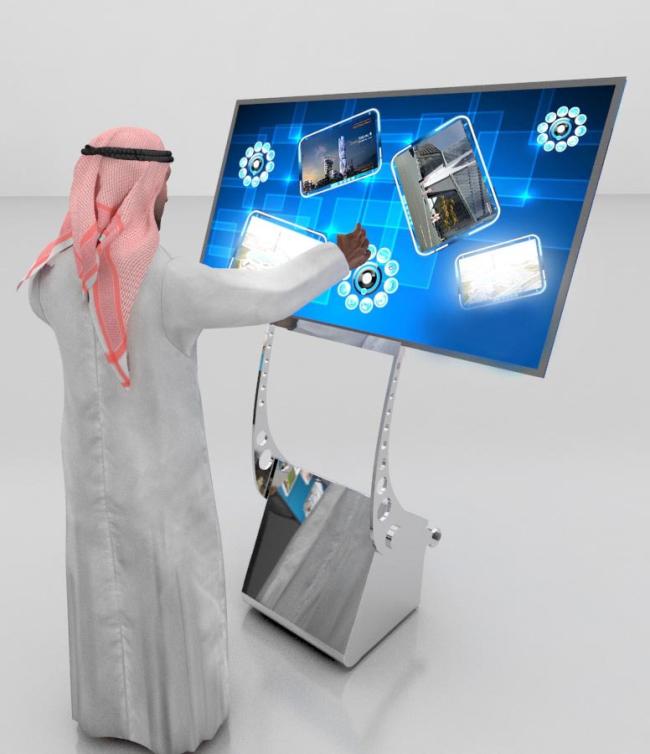

Indoor / outdoor kiosks,Exhibitions,
Visitor attractions,

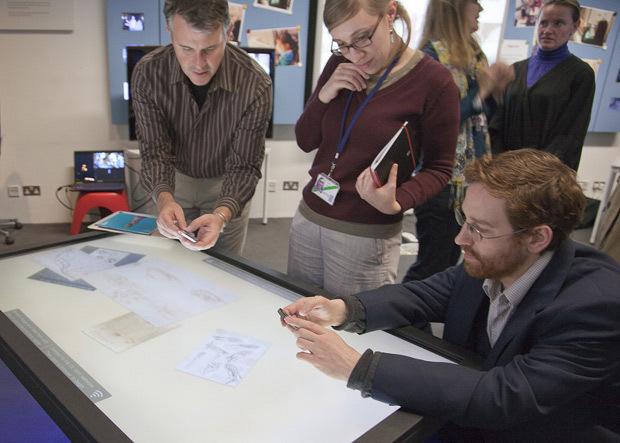

Museums Touch tables,
Training,meeting rooms,etc.
Specifications of Interactive Touch Foils:
| Induction method | The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix |
| Touch size | 17"~120" can be customized |
| Touch accuracy | No drift, the deviation is about 1~3mm |
| Calibration way | software calibration |
| Induction thickness (penetration) | Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm |
| Scanning frequency | 60Hz~130hz |
| Output way | USB 2.0 (HID public interface to USB Mini B interface) |
| Compatibility system | WIN7 /WIN8 /Linux (ubantu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc. |
| Temperature range | -20°C~60°C |
| Humidity range | 0% RH to 95% RH (without condensation neighborhood) |
| Transmittance | >93% |
| Power consumption | Max 0.5W |
| Product Certification | CE,FCC,ROHS |
| EMC | EN61000-6-1:2007 EN61000-6-3:2007+A1:2011 |
Packaging & Shipping
Our Services
1. Focus on customer requirement,Provide customization service
2. More than 20 RD engineers fouce on touch screen techology, Fast provide solutions for customer
3. Automatic production Sealed dust-free workshops CE,UL, FCC approved
4. Fast respone and Fast delivery
