DID Seamless Narrow Bezel LCD Video Wall 3.5mm 100 - 240V Power Supply For Public
Samsung DID Seamless Narrow Bezel 3*3 46 Inch LCD Video Wall 3.5mm
| Model | ZXT-LTI460HN11 |
| Panel brand | Samsung |
| Unit dimensions | 46” |
| Panel type | TFT-LCD |
| Brightness | 700cd/ m2 |
| Contrast | 3000:1 |
| Optimal resolution | 1980×1080 |
| Aspect ratio | 16:9 |
| Display color | 16.7M |
| Response time | 8ms |
| Pixel pitch | 0.53025 (H) ×0.53025mm (V) |
| Viewing Angle | 178º (H)/178º(V) |
| Lamp life | 50000 (minimum) hours |
| Operating temperature | 0~50℃ |
| Humidity | 10%~80% |
| Surface treatment | Matte (Haze 5.5%), |
| Display area | 1018.353×572.544 mm (horizontal*vertical) |
| Viewable area | 1019×573.1 (horizontal*vertical) |
| Dimensions | 1025.7×579.8 mm (horizontal*vertical) |
| Dimensions | 58.53 (Max.) mm (thickness) |
| Physical seam | 3.5mm |

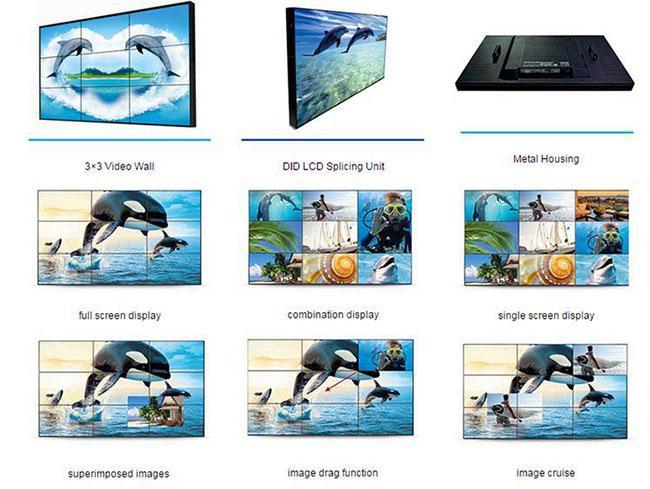

| Basic functions | M rows × N columns, multi-unit splicing, full-screen display, split-screen display, any combination display (multi-channel signal), PIP signal cross screen roaming, superimposing and zooming |
| Image splicing controller (optional) | 1. Multi-layer cross screen roaming and superimposing, scaling of all windows in any proportion and any size in full range; 2. Support intelligent split of single, four, six, nine and sixteen screens, built-in HD mixing matrix |
| Input and output | |
| High definition multimedia interface | HDMI 1-channel |
| Digital video interface | DVI-D 1-channel |
| D-Sub interface | VGA 1-channel |
| Composite video input | BNC 2-channel |
| Composite video output | BNC 2-channel |
| Control interface | RJ45 (RS-232 protocol) |
| Video | |
| Video format | PAL/NTSC/SECAM |
| Compatible input | 480P, 576P, 720P, 1080P |
| 3D noise reduction | Yes |
| Video noise reduction | Yes |
| Power supply | |
| Voltage input | AC100V~240V 50/60HZ |
| Power loss | ≤220W |
| Standby power | ≤3W |
| Mounting | |
| Wall-mounted, floor-standing enclosure (optional) | |
 |
 |
 |
 |
 |
Product Overview:
- Ø Use industrial-grade professional DID LCD splicing screen, designed for industrial monitoring and multimedia information display to achieve signal splicing display and achieve signal split display, windowing, superimposing, cross screen, zooming and other special displays.
- Ø Ultra-narrow border design, bilateral seam up to 5.5mm.
- Ø Support 7×24 hours, 365 days of continuous power-on, high reliability and stability, backlight life up to 60,000 hours.
- Ø The system can meet both analog signal access and digital HD signal access, and various types of signal input can achieve single-screen display, combined splicing display, and full-screen splicing display.
- Ø All signals are connected to LCD splicing screen through matrix to achieve signal switching and free combination and splicing.
- Ø All splicing units can display the same or different sources on a single screen.
- Ø The video signals can be connected to all kinds of storage devices to facilitate future access and access to the LCD splicing screen for real-time display.
- Ø The entire large screen display system includes splicing screen, various matrices and image splicing processor, which can be controlled and managed through Foretell large screen control software.
- Ø Full hardware architecture, no CPU or operating system;
- Ø Multi-bus parallel processing, powerful processing function;
- Ø Start time less than 5 seconds;
- Ø No risk of virus infection, ensuring excellent security;
- Ø Integrate multi-channel video signal types: HDMI, DVI, VGA, CVBS (composite video);
- Ø Composite video can be looped out;
- Ø Embedded 3D video bright separation circuit unit;
- Ø Embedded 3D progressive processing and frame-rate normalization and conversion circuit unit;
- Ø Embedded 3D digital signal noise reduction unit;
- Ø Unit supports driving 1920x1080 LCD screen;
- Ø RS232 remote control, each unit can be looped out;
- Ø Continuous operating24 hours a day;
- Ø Easy to operate, flexibly operate the system with the Foretell large screen control software;
- Ø Open underlying communication protocol, users can flexibly use third-party control system or prepare software to construct large screen engineering system
Video Wall for Applications:

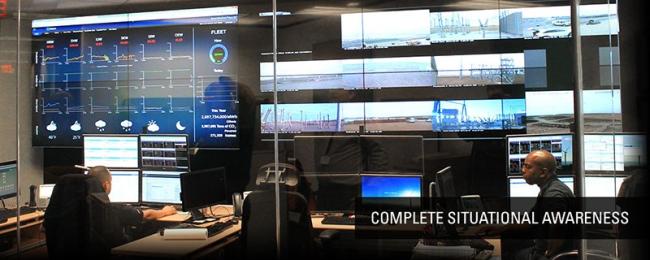

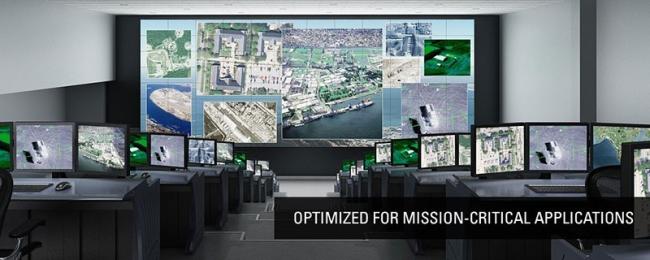

ZXT LCD large screen splicing system is currently used in military command and control centers, government agencies, corporate multimedia video conferencing display systems, traffic management command centers, city management emergency command centers, production scheduling control centers, mining production safety monitoring centers, shopping malls, hotels, communication information display systems, financial securities information display systems, public security and fire fighting, weather and marine flood prevention command centers, brand store image display system, etc.
1, FAQ :
1), what is HS code for LED/LCD Video Wall ?
8528591090 for LED/LCD Video Wall .
2), what brand of screen are you using?
we are using Samsung,LG,AUO and CHIMEI screen.
3), How long you can finish the production?
For the sample order, we can finish the production within 7 working days, If we have it in stock, we can send you the sample within 3 days after received your payment.
4), What is your after-sale service?
One year warranty from the shipping date.We offer 100% guarantee on our product.
5), Which size of LED/LCD Video Wall do you have?
At present, The screen size range of LED/LCD Video Wall includes: 39"/40"/42"/46/47"/55"/60". As for LED/LCD Video Wall solution, we can supply : 1x2,1x3, 2x3, 3x3, 4x2, 4x3, 4x4, 4x5, 5x5, 6x5, 6x4,
6x3, 6x2, 7x2, 7x3, 7x4, 7x5, 7x6, 7x7, 8x2, 8x3, 8x4, 8x5, 8x6, 8x7, 8x8, 9x2, 9x3, 9x4, 9x5, 9x6.

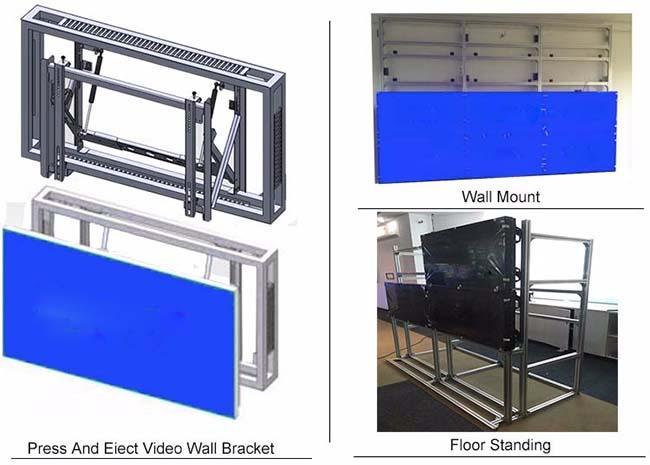

Installation Types.
Which one video wall installation type can meet your requirements ? Please confirm the installation type with our salesman.
