Supermarket Mall Touch Screen Wall Display , Full HD Digital Signage Lcd Video Display
Supermarket Mall DID Full HD Wall Video Digital Signage Advertising Player LCD Monitor
DID LCD splicing screen can be any combination: either large screen splicing, small screen splicing; either single-screen display, you can also splicing the entire screen. According to customer requirements for the application of LCD splicing screen system and system size, according to the actual application environment, select the appropriate splicing methods and the best products, design personalized programs to meet customer needs.
Product Overview:
- Ø Use industrial-grade professional DID LCD splicing screen, designed for industrial monitoring and multimedia information display to achieve signal splicing display and achieve signal split display, windowing, superimposing, cross screen, zooming and other special displays.
- Ø Ultra-narrow border design, bilateral seam up to 5.5mm.
- Ø Support 7×24 hours, 365 days of continuous power-on, high reliability and stability, backlight life up to 60,000 hours.
- Ø The system can meet both analog signal access and digital HD signal access, and various types of signal input can achieve single-screen display, combined splicing display, and full-screen splicing display.
- Ø All signals are connected to LCD splicing screen through matrix to achieve signal switching and free combination and splicing.
- Ø All splicing units can display the same or different sources on a single screen.
- Ø The video signals can be connected to all kinds of storage devices to facilitate future access and access to the LCD splicing screen for real-time display.
- Ø The entire large screen display system includes splicing screen, various matrices and image splicing processor, which can be controlled and managed through Foretell large screen control software.
- Ø Full hardware architecture, no CPU or operating system;
- Ø Multi-bus parallel processing, powerful processing function;
- Ø Start time less than 5 seconds;
- Ø No risk of virus infection, ensuring excellent security;
- Ø Integrate multi-channel video signal types: HDMI, DVI, VGA, CVBS (composite video);
- Ø Composite video can be looped out;
- Ø Embedded 3D video bright separation circuit unit;
- Ø Embedded 3D progressive processing and frame-rate normalization and conversion circuit unit;
- Ø Embedded 3D digital signal noise reduction unit;
- Ø Unit supports driving 1920x1080 LCD screen;
- Ø RS232 remote control, each unit can be looped out;
- Ø Continuous operating24 hours a day;
- Ø Easy to operate, flexibly operate the system with the Foretell large screen control software;
- Ø Open underlying communication protocol, users can flexibly use third-party control system or prepare software to construct large screen engineering system
| Specifications | ||||||
| Model No. | PJ5502(US-LTI550HN05) | |||||
| Panel Size | 55" Samsung DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight) | |||||
| Aspect Ratio | 16:9 | |||||
| Max Resolution Support | 1920x1080 | |||||
| Color | 8Bit,16.7M | |||||
| Brightness (nits) | 450cd/m2 | |||||
| Contrast | 3500:1 | |||||
| Visual Angle (H/V) | 178° | |||||
| Response Time | <=6ms | |||||
| Life(hrs) | >60,000(hrs) | |||||
| Input and output | ||||||
| DVI | 1 | |||||
| HD | 1 | |||||
| VGA | 1 | |||||
| YPbPr | 1(BNCx3) | |||||
| S-video | 1(BNCx2) | |||||
| Composite Video Input/(AV) | 3(BNCx3) | |||||
| Composite Video Output | 2(BNCx2) | |||||
| Control signal input and loop out | RS232(RJ45-8) | |||||
| Split Screen | Support Picture in Picture(PIP/POP) | |||||
| Power | ||||||
| Power Supply | AC100V~240V | |||||
| Maximum Power Consumption | 250W | |||||
| Standby Power Consumption | <=3W | |||||
| Temperature | ||||||
| Working Temperature | 0°C~50°C | |||||
| Working Humidity | 20%-80% | |||||
| Dimension | 1215.3mm × 686.1mmx116.2mm | |||||
| Video Wall Controller(Built-in each Screen) | ||||||
| Model No. | US-P816A | |||||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs | ||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |||||
| Y/C | 2*BNC inputs, support PAL/NTSC all formats | |||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||
| Operate mode | Panel key operation(Customized) | |||||
| Standard RS232 port( provide free control software) | ||||||
| Infrared Remote Control Operation | ||||||
| Engineering software | Customized | |||||
| Working temperature | 0~70 °C | |||||
| working humidity | 5~95 %RH | |||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||
| power consumption | Max 300W,according to different Screen models | |||||
| Dimension | 338×295×60(mm) | |||||
| Weight | About 3.5KG | |||||

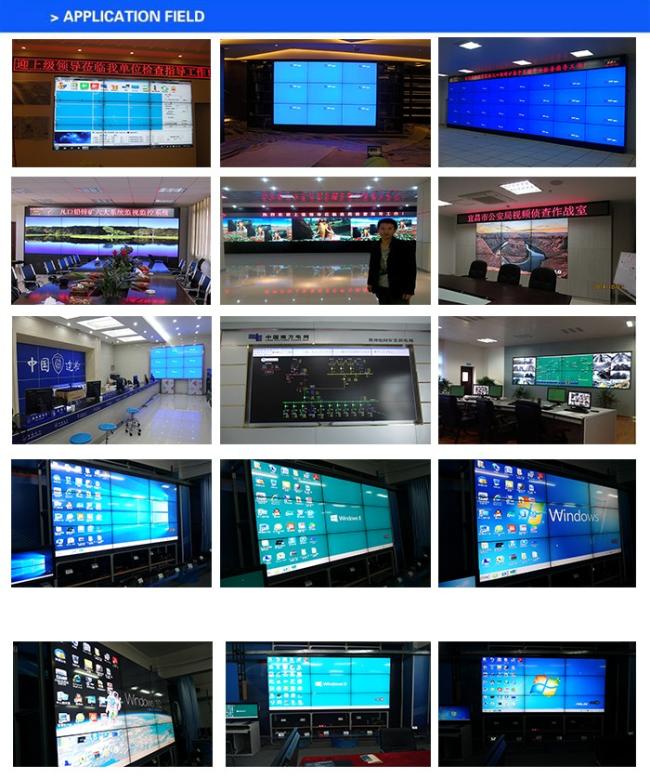

Video Wall for Applications:
Foretell LCD large screen splicing system is currently used in military command and control centers, government agencies, corporate multimedia video conferencing display systems, traffic management command centers, city management emergency command centers, production scheduling control centers, mining production safety monitoring centers, shopping malls, hotels, communication information display systems, financial securities information display systems, public security and fire fighting, weather and marine flood prevention command centers, brand store image display system, etc.
Pakage details: Inner 4CM PE foam, middle export carton box,outer export wooden box
