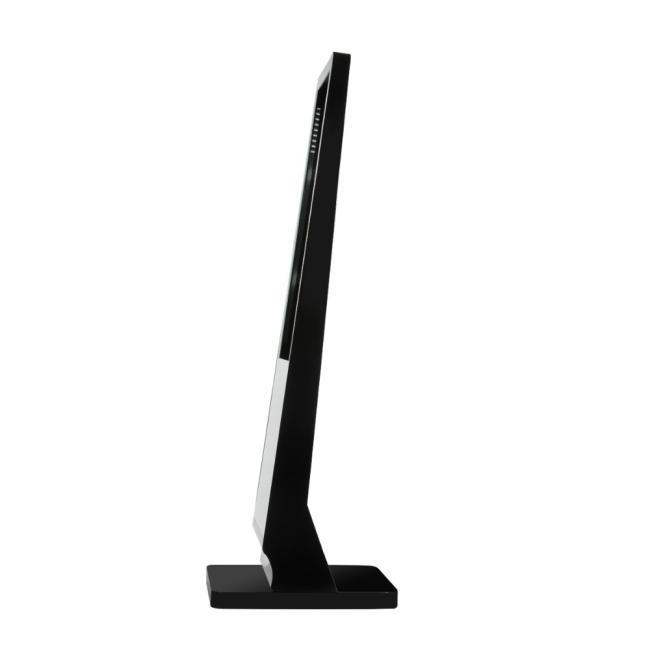

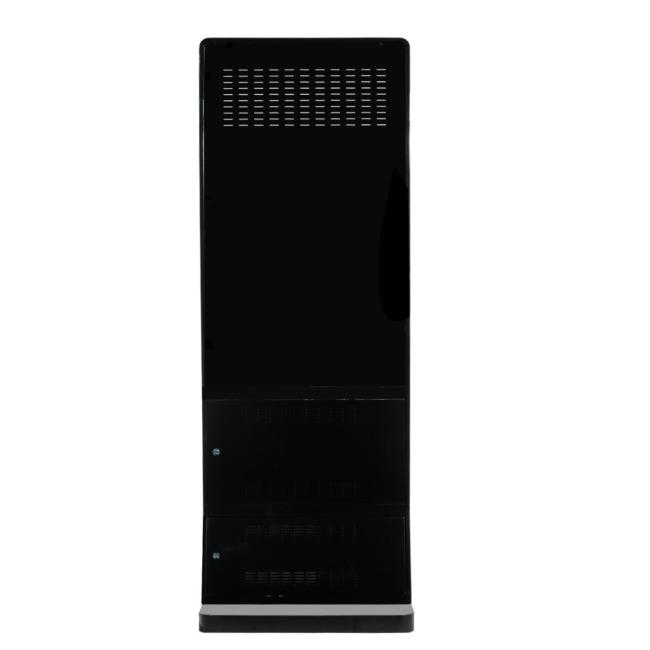

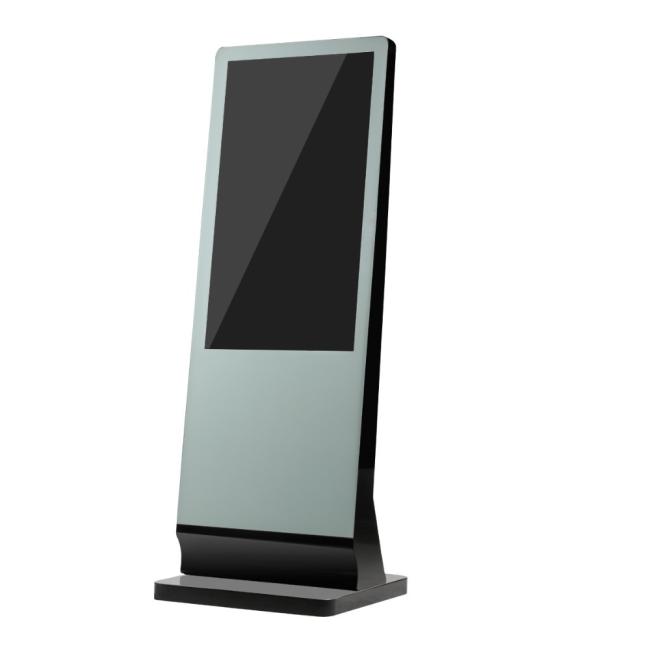

49 Inch Health Interactive Touch Screen Kiosk Floor Stand Infrared Sensor Anti - Sunlight
43/49 Inch Standing Touch Screen All In One Information Health Kiosks
Main Features
1. Humanization sleek & smart design
2. Metal wiredrawing craft on the frame
3. Automobile metal black or silver painting
4. Movable touch monitor with build-in PC
5. Multi touch operation
6. Various application
7. Worldwide certificate approval, such as RoHS, CE, and FCC
TFT LED display
| Items | TFT LED Display Specifications |
| Size | 43 inch |
| Brand | Samsung / LG/ChiMei/AUO |
| Display area(mm) | 941*530 |
| Aspect ratio | 16:9 |
| Resolution | 1920X1080 |
| Color | 16.7M |
| Dot pitch(mm) | 0.297X0.297 |
| View angle | 178°/178° |
| Brightness | 450nits |
| Contrast | 5000:1 |
| Respond time | 6ms |
| Life span (hrs) | Over 60,000 |
Touch Screen:
| Items | Touch Screen Specifications |
| Touch type | Infrared sensor |
| Typical feature | Dust-proof, explosion-proof, anti-sunlight |
| Touch points | Multi 2points to 32points |
| Accuracy | ±2mm |
| Light transmittance | Over 92% |
| Surface hardness | 7H |
| Output resolution | 4096X4096 |
| Respond time | Less than 8ms |
| Life span | Over 60,000,000 single point touch |
| Items | Touch Foil Film Specifications |
| Touch type | Projected capacitive touch |
| Typical feature | Touch through tempered glass |
| Touch points | Multi 2points to 40points |
| Accuracy | ≤1mm |
| Sensor | 56 sensor to multi 2points, 64X64 sensor to multi 4points to 40points |
| Light transmittance | Over 95% |
| Scanning speed | 16ms |
| Output solution | 4096X4096 |
| Safe distance | At least 3mm (between TFT LCD and touch foil) |
| Life span | 7-9 years |
Ø PC configurations (it can be changed per the demand of clients)
| Items | PC Configurations |
| CPU | Intel I3-3110 |
| Mother board | Intel HM65 |
| Memory | DDR3 4GB |
| Hard disk | SATA 500GB |
| Graphic card | Integrated HD graphic card |
| Audio card | Integrated Realtek ALC889 8 channels |
| Network card | 1000M Realtek RTL8111E |
| Speaker | Sony origin 2X10w loud speaker |
| Interfaces | USB |
| Operating System | Windows 8 (English trial version) |
Ø Kiosk
| Items | Kiosk Specifications |
| Material | 2-3mm metal plate |
| Metal cut | Metal is cut by Laser Machine without burr |
| Surface finish | Automobile paint (carbon black or silver white) |
| Voltage input | AC 110V – 240V |
| Power plug | America standard, Europe standard |
| Work temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Humidity | 20%-80% |
Applications
Ø Business organizations
l Supermarket, Shopping mall, Hotel, Restaurant, Pharmacy
Ø Non-profit organizations
l Airport, Railway / bus station, Exhibition, Museum, Hospital, School, Convention center, Lottery station, Government affairs center
Ø Financial organizations
l Bank, Insurance company, Foundation, Security company
Ø Entertainments
l Movie theater, Club, Bar, Salon, Gambling house
Packaging Details: Foam, Carton, Wooden Case.
Delivery Details: 4-5 weeks for sample order, 5-6 weeks for large order.
1. Full testing before shipping.
2. 12 months free warranty.
3. Agency Approvals: Ce, RoHS, FCC.
