Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC
17'' Industrial Touch Screen Panel Kit With Touch Screen Glove/Pen For All In One Touch Screen Panel PC
1. Product Description
What's G+G Projected Capactive Touch Screen include ?

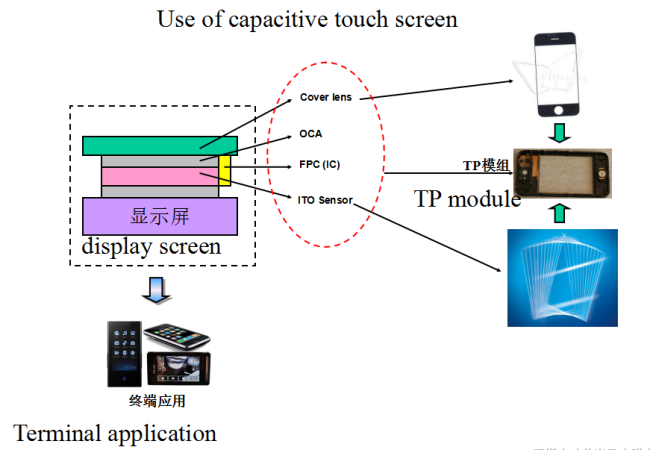

Glass Cover Lens + Glass ITO Sensor ( SITO or DITO ) + Control Board( PCB Board )
AG/AR/AF is optional.
Cover lens(Thickness & measurement), even size, can be customized.
Advantage:
- Capacitive touch technology.
- Highest resolution, sensitive and fast response
- Easy to install with LCD monitor
- Dustproof and Waterproof maintenance free.
- Touch screens can be built in specific dimensions requested by clients in custom orders
- Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.
2. Specification
1) Product Characteristics
| (Item) | (Spec.) | (Remarks) |
| (Product structure) | G+G | |
| (AVdimensiondescription) | 17 inch | |
| (V.A. Size) | 338.9*272mm(±0.2mm) | |
| (Total Thickness) | 4.3mm (±0.15mm) | |
| (Outline Dimension) | 377*309m(0/-0.2mm) | Silk black |
| (O.D. Fillet) | R2mm(-0.2mm)×4 | |
| (Coverlens Thickness) | 1.1mm(±0.05mm) | |
| (ITO Glass Size) | 357*209.4(±0.2mm) | |
| (ITO Glass Thickness) | 0.2mm(±0.05mm) |
| Items | Specification |
| Operation Conditions | -40C~+85C at Min 20% to Max 90%RH |
| Storage Conditions | -40C~+125C at Min 20% to Max 90%RH |
| Electrostatic Discharge (Non operation) |
Contact: ±4kv, 3 times/1 point, 1 time/1 sec, Total 3 point Air: ±8kv, 3 times/1 point, 1 time/1 sec, Total 3 point |

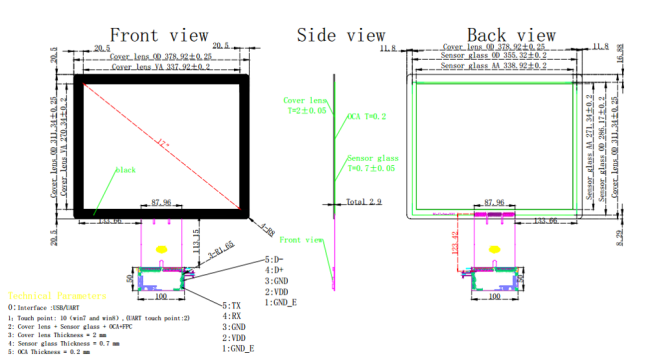

2) Drawing
3. Payment & shipping
