49 Inch 500nits High Brightness Transparent LCD Screen Digital Signage Display For Shopping Mall
Custom 49 Inch 500nits Original LG Panel Transparent LCD Digital Signage Display for Shopping Mall

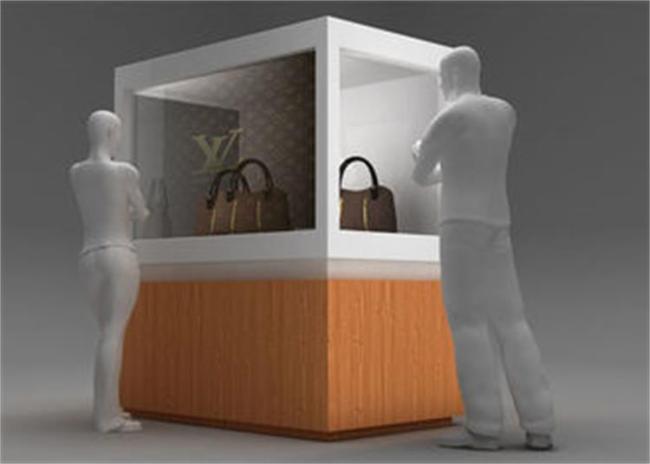

Transparent advertising show case can be tailor-made as per specific demand:
1. Size can be in 10.1inch to 84inch.
2. Color can be customized.
3. OS can be standalone, android, Windows 10, has IR touch on option.
Standalone version :
* Chipset: Mstar, support 3840*2160P video
* Main function: auto playback video in loop
* Support play list setup (times to play very file, timing of playing files)
* Functions: video+music+slide show+ebook+calendar+clock+timer on/off
* Support video formats: MPEG2, MPEG4, H.264, RMVB, AVI, DIVX,
(avi,mov,ts,mpg,ms2ts,mkv) etc, 1080p.max.
* Support audio formats: MP3, WMA, AC3 etc.
* I/O terminals: USB, SD card slot, HDMI input
* Audio output: built in loudspeakers 2pcs*5W
* Customized: boot logo/opening logo
* Multi-language: Chinese, English and so on
* Power Supply: AC input 100V-240V, DC output 12V 3A
* Accesorry: remote control, CE approved AC power adapter
Network windows version :
* Chipset:Intel I3 or I5 , support 3840*2160P video,
* DDR: 4GB
* SSD: 64GB
* I/O terminals:USB*4,VGA*1,HDMI*1,RJ45*1,Audio*1,MIC*1,DC IN*1
* Two-channel stereo audio output
* WiFi :802.11 B.G.N
or Android version
I/O :TF*1,USB*2,HDMI output*1,Earphone*1,RJ45*1,DCIN*1
WIFI Signage Display : 802.11b/g/n (WEP/WPA/WPA2)
Configuration description:
1. OS: Android 4.4.4
2. CPU: Allwinner A83T , Octa core, RK3288 Quadcore Cortex-A17 1.8GHz
3. DDR3 :1GB or 2GB
4. Internal storage: 8GB NAND FLASH
5. External memory: High-speed 8GB TF card(Max support 32GB)
| General Specification | |
| Panel Size: | 49 inch |
| Display Area (mm): | 1097.84×618.41(H×V) mm |
| Maximum Resolution: | 1920 X 1080P |
| Display Color: | 16.7M |
| Response time: | 5 ms |
| Transparency: | 90% |
| Brightness: | 500cd/m2 |
| View Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Aspect Ratio: | 16:9 |
| Contrast Ratio: | 3000:1 |
| Pixel Pitch: | 0.485mm (H) x 0.485mm (W) |
| Working Life(hrs): | 60000 hours |
| Appearance | |
| Material: | 3mm Aluminum, 1.5mm mild steel, 3-5mm temper glass, Industrial deluxe powder coating. |
| Color: | Shell Color: White by default (multi-color customization supported) ; Inside Cabinet Color: White |
| Quality Standard: | ISO9001, CCC, CE, FCC, RoSH |
| Installation: | Desk-top/Wall Mount/ Stand Alone |
| Operating System | |
| System Main Board: | Single Media Player / Android System / Windows System |
| Audio Output: | Built-in Speaker 2 X 5W |
| Video Input: | HDMI/VGA/DVI |
| Storage: | USB/SD/CF/SSD/HDD |
| Video Format: | MKV,TS,M2TS,WMV,IFO,VOB,DAT,AVI,MPG,MP4,MOV,RM,RMVB,DIVX,XVID,FLV |
| Audio Format: | MP3,WMA,WAV,OGG,AAC,LPCM,FLAC,AC3,APE |
| Image Resolution: | 480P/720P/1080P(Above 19”) |
| System Language: | Chinese/English( Multiple Language Supported) |
| Optional Board Configuration (Android/PC) | |
| System Main Board: | Web-based Android System |
| RAM: | 512M/2G |
| ROM: | 8G(can be expanded to 32GB) |
| System Main Board: | Intel Dual Core/ i3/i5/i7/Quad Core/Eight Core |
| PC RAM: | 2G/4G/8G |
| PC ROM: | 500G HDD ; 32G/64G/128G SSD |
| Graphics: | Integrated/ Discrete |
| Operation System: | Windows 7/8/10 ; Linux |
| Touch Component (Optional) | |
| Touch Technology: | Infrared/Capacitive |
| Touch Medium: | Pen, Finger, Finger of gloved hand activation |
| Resolution: | 32768 * 32768 |
| Response Time: | IR <6ms ; Capacitive<3ms |
| Touch Precision: | Single-touch: Min. Φ3mm; Multi-touch: Min. Φ6mm |
| Power Consumption: | <5W |
| Interface: | USB 2.0 (Full Speed) |
| Minimum Touch Object: | 2.5mm X 2.5mm |
| Working Condition | |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Working Humidity | 20%~85% |
| Storage Humidity | 10%~90% |
| Power | |
| Power supply | 100~240V |
| Input Voltage | DC 12V |
