36.6 Inch Ultra Wide Bar Display Lcd Ads Player For Supermarket Advertising
36.6 inch video shelf strip ultra wide bar type lcd ads player for supermarket advertising
Bar type lcd panels with a very wide aspect ratio are suitable for all applications with panoramic display screen. Larger Bar Type LCD panels are used primarily as information and advertising displays in areas like transportation and Digital Signage. Small size ultra-stretched screens are ideal for control panel displays of vending machines or coffee machines.
The specification
| The specification | ||
| Model No | Product model | ZXTLCD-BAR366AJSY |
| LCD Screen Panel | Screen size | 36.6" LCD Panel |
| Active display area | 919.29(H) X 139(V)mm | |
| Resolution | 1920(V) X 290(H) | |
| Brightness | 500cd/m2 | |
| Contrast ratio | 2000:1 | |
| Display color | 16.7M | |
| Backlight type | WLED | |
| Viewing angles | 178°(H) X 178°(V) | |
| Response time | 8ms | |
| Lifespan | 50000 hours | |
| Monitor PCB Board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
| RAM | 1G DDR3(1 G/2G for optional ) | |
| ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) | |
| Memory extension | TF Card extension with the highest support for 64GB | |
| System | Android 8.1 | |
| Internet | Support 2.4G WIFI connection | |
| Interfaces | 1*USB2.0 | |
| 1*OTG USB | ||
| 1*RJ45 | ||
| Video formats | wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 | |
| Photo formats | BMP,JPEG,PNG,GIF | |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤30W | |
| Product size | 960(H)X170(V)X48.5(D)mm | |
| Installation | Embedded, wall-mounted | |
| Apperance material | Metal shell | |
| Net weight | ≤5.8KG | |
| Surface treatment | Black metal paint | |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% | ||
| Atmospheric Pressure:86kPa～104kPa | ||
| Working Environment | Temperature:-10℃～50℃ | |
| Humidity:10%～85% | ||
| Atmospheric Pressure:86KPa～104KPa | ||
| Packing list | Bar lcd display | 1pcs |
| Power Cable | 1Pcs | |
| Support special requirements customization | ||

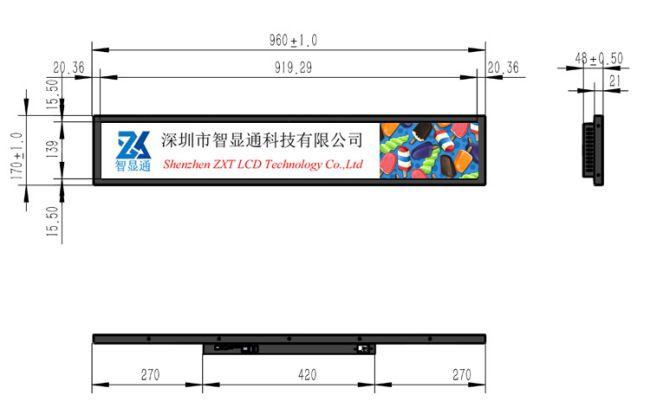

The design drawing as follows :

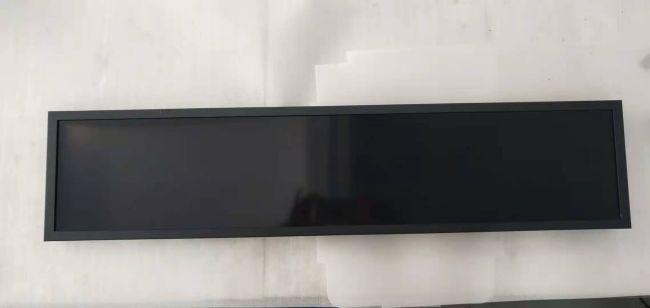

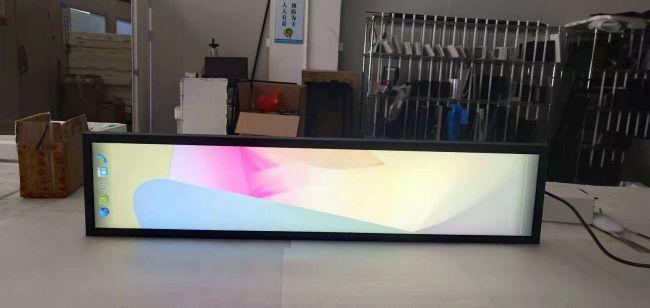

Product Physical Photo as follows :
FAQ :
1. How do ZXT LCD ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 Stock up much screen panel in factory, and non-stop Power-on test for each LCD Panel with 72 hours.
1.4.Dedicated quality assurance team with failure case analysis process
1.5.Continuous staff training and education
2. How do ZXT LCD keep your price competitive?
Over the last decade, prices of many raw materials (e.g. copper, chemicals) had doubled, tripled or quadrupled; Chinese currency RMB had appreciated 31% over US dollar; And our labor cost also increased significantly.
However, ZXT LCD have kept our pricing steady. This owns entirely to our innovations in reducing cost, avoiding wastes and improving efficiency. Our prices are very competitive in the industry at the same quality level.
We believe in a win-win partnership with our customers. Our partnership will be mutually beneficial if we can provide you an edge on cost and quality.
If you would like to discuss your requirement or need any additional information on our bar type Lcd , and then please do not hesitate to contact our sales team.
