High Performance Tumble Shot Blasting Machine For Small Metal Parts And Castings
Q32 Tumble Belt Shot Blasting Machine for Small Metal Parts and Castings

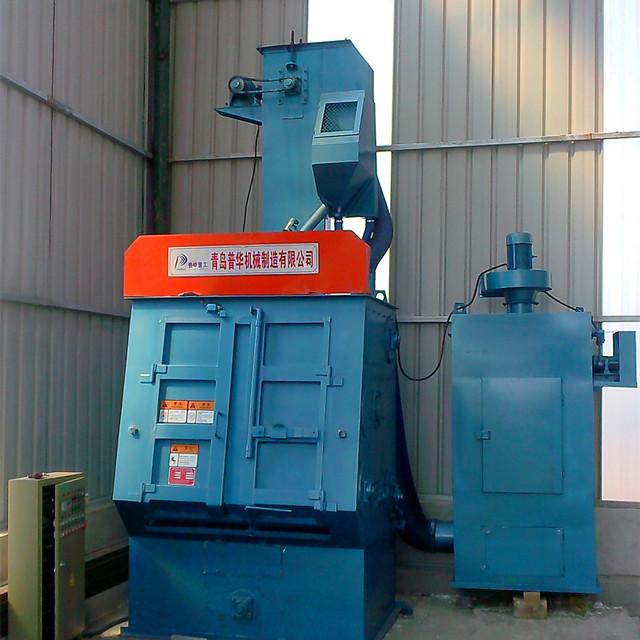

Q3210 series pedrail tumble belt type shot blasting cleaning machine
Technical parameter :
This series is used for surface cleaning ,rust romoving,and surface intensification of each kind of middle and small scale casting,forging and so on. It is suitable for diffenent production scale,can be standalone use and many units can also be used in conjunction continuous conveyor components, composing the production of clean-up lines.
Q32 series abrade cleaning up machinehas the advantages of advanced design,reasonable structure small energy consumption and high efficiency.
|
type
parameter |
Q326 | Q3210 | QR3210 |
| Producitivity (T/H) | 0.6-1.2 | 3-5 | 1.5-2.5 |
| Loading weight (KG) | 200 | 800 | 600 |
|
The maximum weight of one piece (KG) |
10 | 15 | 30 |
| Diameter of roller (MM) | 650mm | 1000mm | 1000mm |
| Available capacity (M3) | 0.15 | 0.4 | 0.3 |
| Blasting capacity (KG/MIN) | 100 | 250 | 250 |
| Dedusting air volume (M3/H) | 2200 | 6000 | 5000 |
| Power consumption (KW) | 12.6 | 32.6 | 24.3 |
| Appearance dimension (MM) | 3681*1650*5800 |
3644*2926*5856 |
3972*2600*4768 |
| Total weight of machine (KG) | 2340kgs | 5843kgs |
7400kgs |
