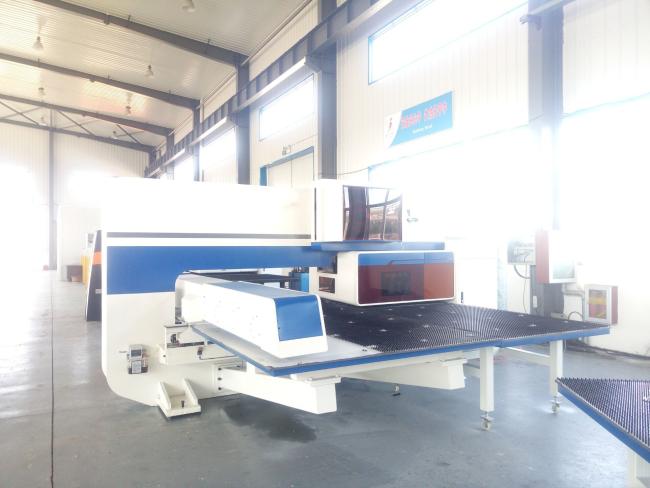

0.55 Mpa Air Pressure CNC Punching Machine Stainless Steel Perforating Equipment
Turret Punching Machine Techinal Parameter
features
1. the transmission using the international brand of precision, large lead ball screw, linear guides, high precision and good performance.
2. international class CNC system, and high reliability.
3. to ensure the high reliability of machine, a clutch of international quality.
4.pneumatic components adopts international famous brand products, so that the machine performance to perfect.
5. the nodular cast iron material and pairwise processing, to ensure the concentricity of the upper and lower mold, which greatly extend the life of the mold and turntable.
6. mold using advanced processing and heat treatment process, long service life.
7. steel plate welded closed o- body, good rigidity and deformation is small.
Parameter
| Unite | B32(Closed Type) |
Nominal Force | KN | 300 |
Max. Process Plate Size | mm | 1250*2500 |
| Max. Process Plate Thickness | mm | ≤6 |
| Max. Punch Hole Size | mm | 88.9 |
| Max. Plate Weight | kg | 150 |
| Number of Station | set | 32 |
| Precision | set | ±0.10 |
| Max. Punch Frequency | hpm | stroke 8mm-500 Stroke 30mm-100 |
| Max. Plate Move Speed | m/min | 120 |
| Rotating Speed | rpm | 30 |
| X Axis Stroke | mm | 1250 |
| Y Axis Stroke | mm | 1250 |
| Number of Control Axis | set | 4 axis |
| CNC system | Germany Siemens | |
| Air Pressure | mpa | 0.55 |
| Dimension | mm | 5200*3800*2200 |
| Motor Power | kw | 4.5 |
| Machine Type | Closed Type |
