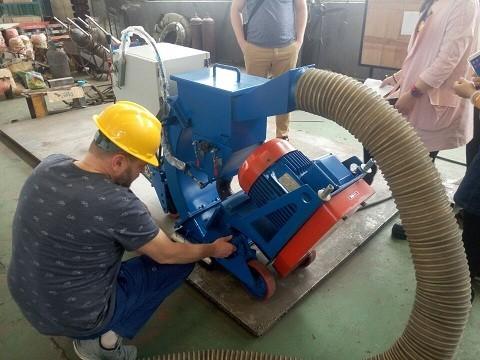

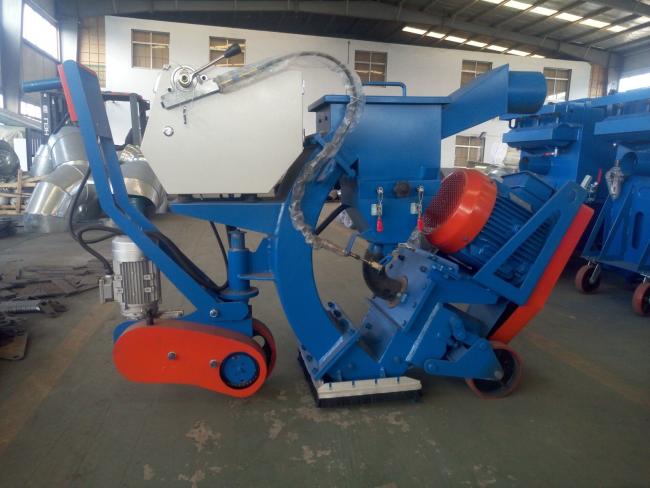

Mobile Type road surface Shot Blasting Machine
Advantages:
1.Easily maneuverable, self-propelled machine–forward and reverse
2.AC inverted drive-motor with integrated brake for even, down-slope operation on ramps and inclines
3.Highly versatile and appropriate for medium to large job sites
4.Labor and time-saving shot blasting process strips, cleans and profiles in one step−cost effective and friendly to the environment
5.Excellent for industrial floor prep, road and airport maintenance, asphalt blasting, decontamination, and much more
6.Operates virtually dust-free when connected to the dust collector−healthier for the operator and other workforce
Technical Parameters:
| Model | PHLM240 | PHLM550 | PHLM600 | PHLM800 |
| Total Power | 18kw | 29kw | 29kw | 38kw |
| Effective cleaning width | 240mm | 550mm | 600mm | 800mm |
| Productivity on concrete | 120m2/h | 300m2/h | 330m2/h | 450m2/h |
| Blasting wheel quantity | One | Two | Two | Two |
| Traveling speed | 0.5 – 23 m/min | 0.5 – 25 m/min | 0.5 – 25 m/min | 0.5 – 20 m/min |
| Dust collecting type |
Blowback cartridge filters |
Blowback cartridge filters |
Blowback cartridge filters |
Blowback cartridge filters |
| Travel type |
Horizontal, self propelled |
Horizontal, self propelled |
Horizontal, self propelled |
Horizontal, self propelled |
| Overall dimension (mm) | 1600×432×1016 | 2050×720×1460 | 2050×720×1460 | 2150×980×1450 |
| Weight | 335kg | 595kg | 630kg | 685kg |
