Steel Pipe Automatic Blasting Machine Pipe Cleaning Machine Environmental Friendly
Price:
Negotiable
MOQ:
1 set
Delivery Time:
30 days
Brand:
Qingdao Puhua
Product Description
Roller Conveyor Type Outer Wall/External Steel Pipe Shot Blasting Machine
QG series steel pipe inner and outer wall shot blasting machine for surface treatment , wiping up the oxide coating , welding slag , appearing the metallic sheen , increasing the area of the surface , which is in favor of UV. It applies in the line of petroleum & chemical , steel , city centralized heating , centralized drainage etc.
Specifications:
| Item Model | QG30 | QG80 | QG150 | |||||
| Dimension of cleaning workpiece(mm) | Φ50-¢500*(6000-10000) | Φ150-¢800*(6000-8000) | Φ(250-15000)*10000 | |||||
| Roller speed(m/min) | 1.0-3.0 | 0.5-2.5 | 860mm/min | |||||
| Blast wheel | Abrasive flow rate(kg/min) | 2*250 | 2*250 | 2*350 | ||||
| Power(kw) | 2*15 | 2*15 | 2*30 | |||||
| Dust collector | Model | BC-36 | BC-48 | BC-42 | ||||
| Ventilation capacity(m3/h) | 5000-7000 | 8000-14500 | 8000-11000 | |||||
| Total power(excluding dust collector)(kw) | 49.45 | 53.77 | 76.25 | |||||
| Overall dimension(excluding dust collector) | (15000-22000)*3100*5400 | (18000-24000)*3850*6800 | (24000*2265)*4986 | |||||
Advantage:
a. High quality surface appearance
b. High productivity efficiency
c. Low cost
d. Environmental friendly
Certifications:

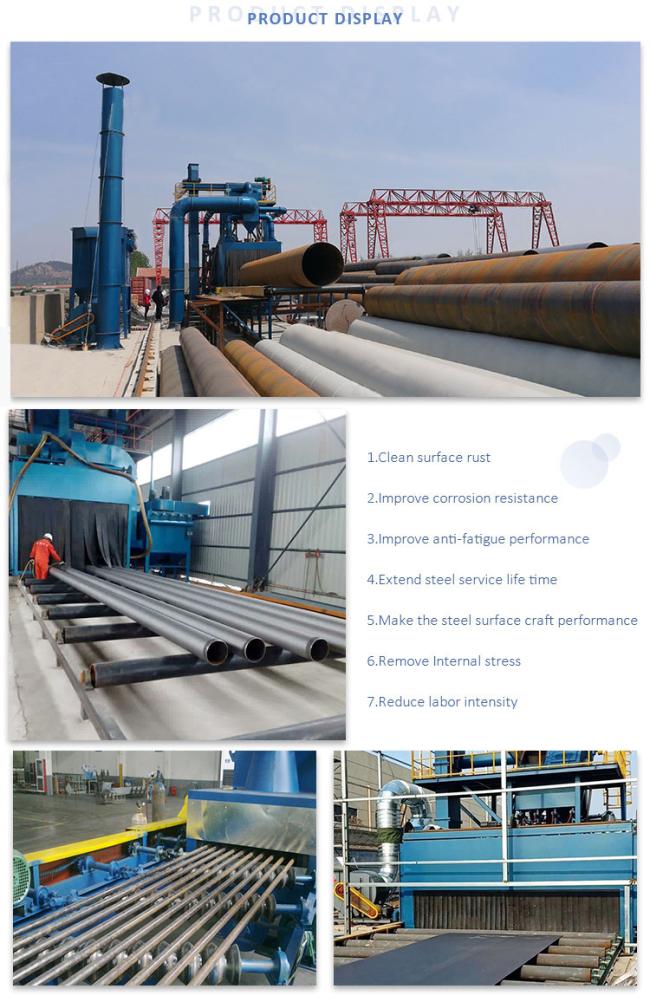

Detail image:
