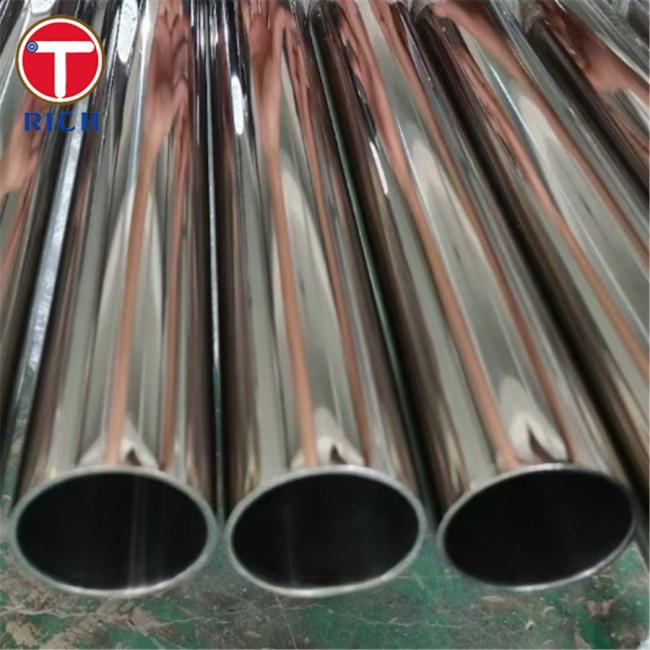

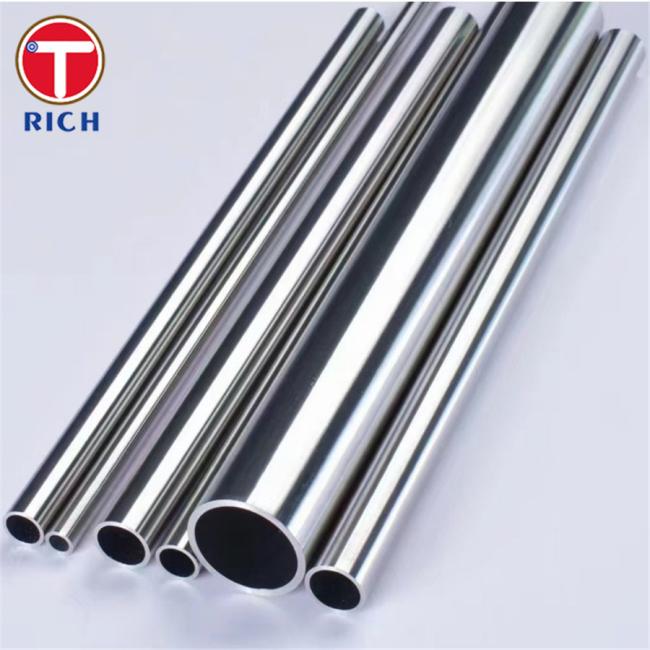

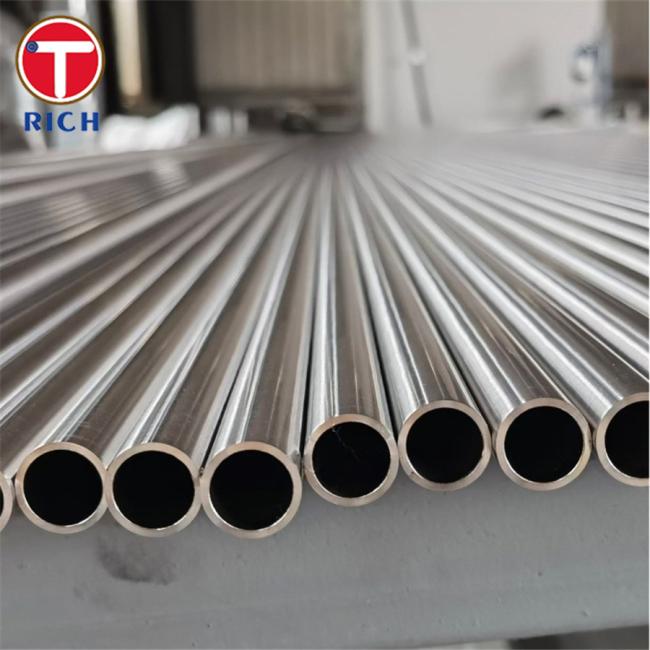

ASTM A249 Welded Steel Tube TP316H Welded Austenitic Steel Tube For Boiler And Heat-Exchanger
ASTM A249 Welded Steel Tube TP316H Welded Austenitic Steel Tube For Boiler And Heat-Exchanger
Material
ASTM A249 specification covers nominal-wall-thickness welded tubes made from austenitic stainless steel TP316H for boiler and heat-exchanger applications.
Specification
- Standard: ASTM A249
- Grade: TP316H
- Designation: Welded Austenitic Steel Tube
- Thickness: Nominal wall
Key Features
- Withstands high temperatures and pressures in boiler applications
- Resistant to corrosion due to high carbon content
- Suitable for high-temperature environments
- Excellent formability and weldability
Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.04 - 0.10 |
| Silicon (Si) | 0.75 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.030 max |
| Chromium (Cr) | 16.0 - 18.0 |
| Nickel (Ni) | 10.0 - 14.0 |
| Molybdenum (Mo) | 2.0 - 3.0 |
Mechanical Properties
| Properties | Values |
|---|---|
| Tensile Strength | 515 MPa |
| Yield Strength | 205 MPa |
| Elongation (%) | 40 min |
| Hardness (Brinell) | 217 max |
Steel Grade
- ASTM A249 TP316H
Application
The ASTM A249 TP316H welded steel tube is commonly used in boiler and heat-exchanger applications where high temperatures and corrosion resistance are required.
Possible Alternative Grades
- ASTM A269 TP316
- ASTM A554 TP316
- ASTM A270 TP316L
