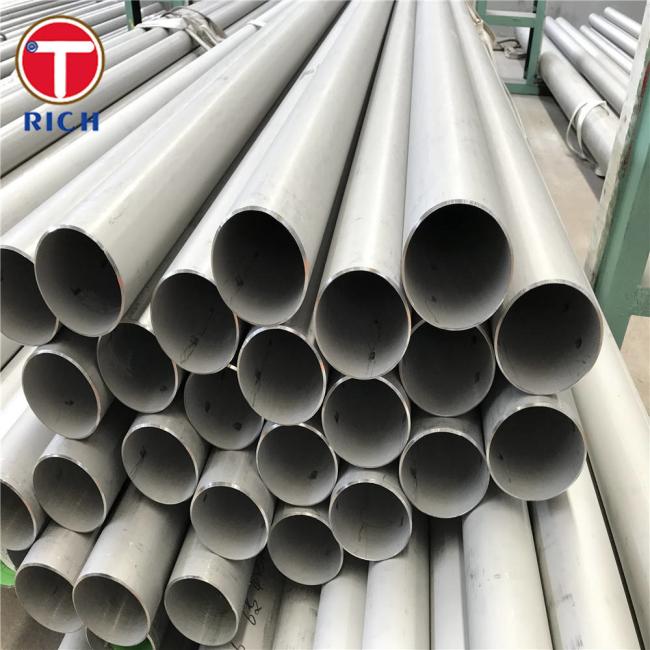

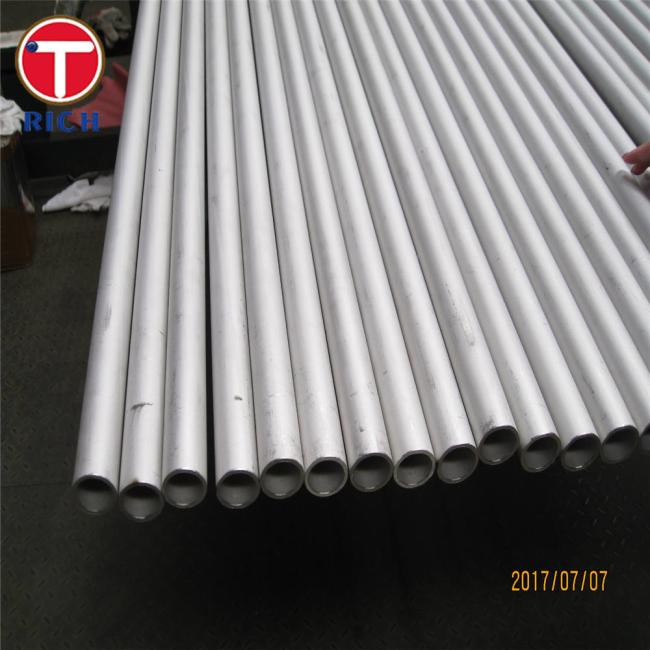

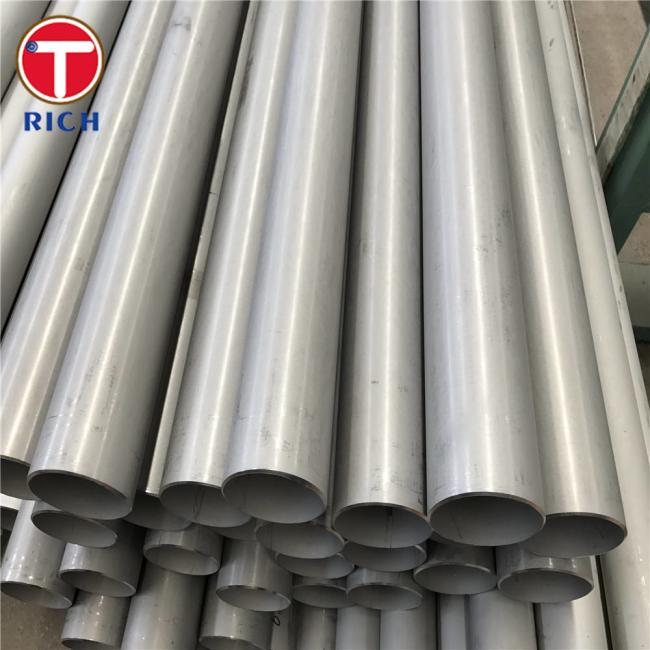

ASTM A209 T1 Seamless Carbon- Molybdenum Alloy-Steel Tube For Boiler
ASTM A209 T1 T1a T1b Seamless Carbon-Molybdenum Alloy-Steel Tube for Boiler
Material
ASTM A209 is a specification that covers seamless carbon-molybdenum alloy-steel tubes intended for high-temperature service. These tubes are primarily used in the construction of boilers and superheaters in power plants and other industrial applications.
Specification
The specification outlines the requirements for the chemical composition, mechanical properties, and manufacturing processes of the tubes. The grades included in this specification are T1, T1a, and T1b, which differ in their chemical composition and mechanical properties.
Key Features
- High-Temperature Resistance: Designed to withstand high temperatures and pressures.
- Seamless Construction: Provides uniformity and strength, reducing the risk of failure.
- Corrosion Resistance: Enhanced resistance to oxidation and corrosion due to the presence of molybdenum.
- Versatile Applications: Suitable for various industrial applications, particularly in power generation.
Chemical Composition
| Grade | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Molybdenum (Mo) |
|---|---|---|---|---|---|
| T1 | 0.10-0.20 | 0.40-0.70 | 0.035 max | 0.025 max | 0.44-0.65 |
| T1a | 0.10-0.20 | 0.40-0.70 | 0.035 max | 0.025 max | 0.44-0.65 |
| T1b | 0.10-0.20 | 0.40-0.70 | 0.035 max | 0.025 max | 0.54-0.65 |
Mechanical Properties
| Grade | Yield Strength (ksi) | Tensile Strength (ksi) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| T1 | 30 | 60-80 | 20 | 150-190 |
| T1a | 30 | 60-80 | 20 | 150-190 |
| T1b | 30 | 60-80 | 20 | 150-190 |
Steel Grade
The steel grades under ASTM A209 are specifically categorized as T1, T1a, and T1b, with each grade having distinct chemical and mechanical properties suitable for different applications.
Application
The primary application of ASTM A209 T1, T1a, and T1b tubes is in the manufacturing of boiler components, including:
- Superheaters
- Economizers
- Heat exchangers
- Pressure vessels
These tubes are essential in industries such as power generation, petrochemical, and manufacturing, where high-temperature and high-pressure conditions are prevalent.
Possible Alternative Grades
While ASTM A209 T1, T1a, and T1b are widely used, there are alternative grades that may be considered based on specific requirements:
- ASTM A213: Covers seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.
- ASTM A335: Covers seamless ferritic alloy-steel pipe for high-temperature service.
- ASTM A192: Covers seamless carbon steel boiler tubes for high-pressure service.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
