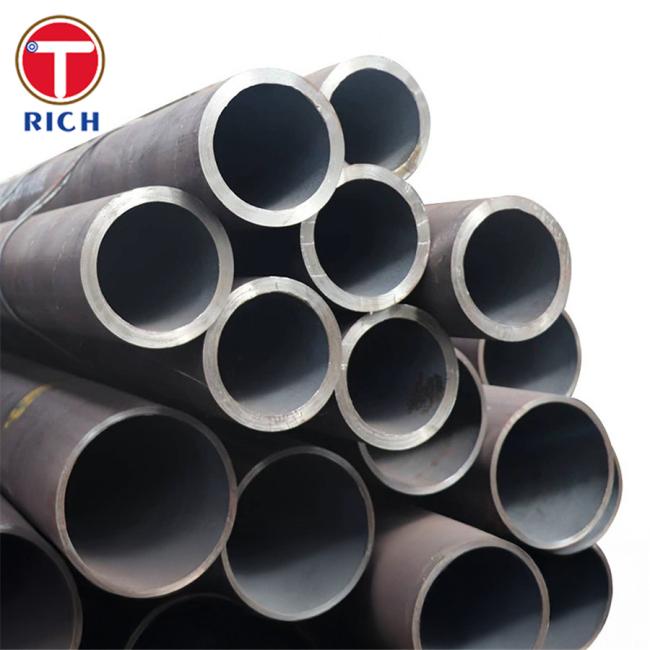

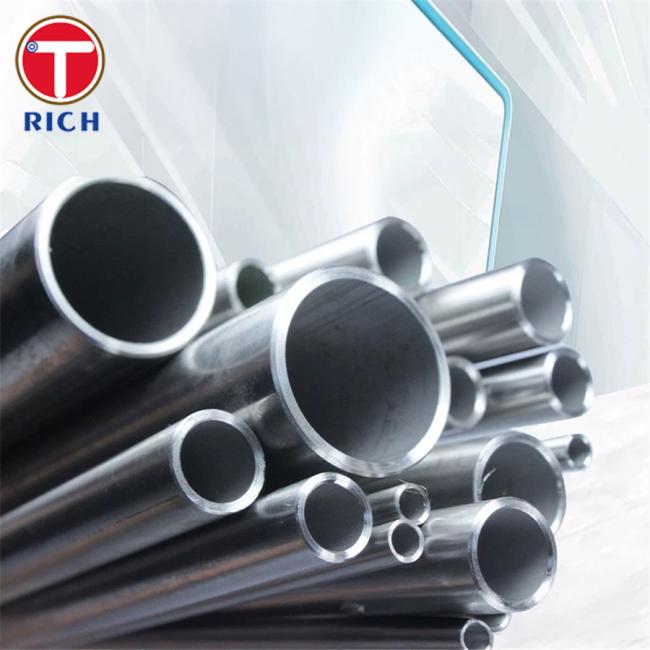

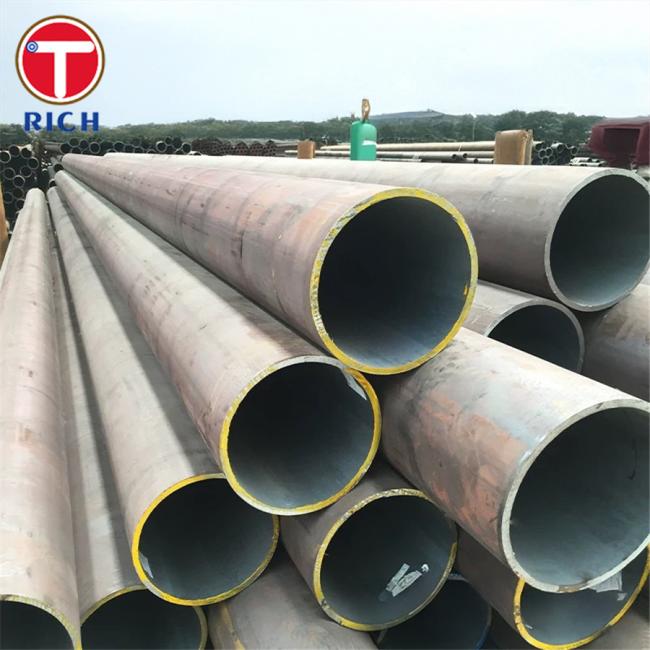

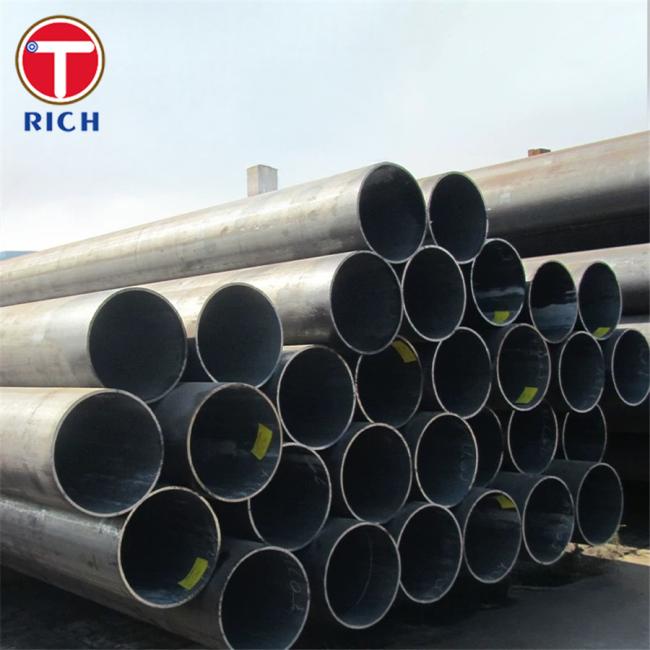

TU 14-3-460 Seamless Steel Tubes For Boilers And Pipelines
TU 14-3-460 Seamless Steel Tubes For Boilers And Pipelines
Seamless steel tubes are essential components in various industrial applications, particularly in boilers and pipelines. The TU 14-3-460 specification outlines the requirements for these tubes, ensuring they meet the necessary standards for performance and safety.
Material
The TU 14-3-460 seamless steel tubes are primarily made from carbon steel, which provides excellent strength and durability. This material is chosen for its ability to withstand high pressure and temperature conditions, making it ideal for use in boilers and pipelines.
Specification
The specification for TU 14-3-460 seamless steel tubes includes dimensions, tolerances, and testing requirements. These tubes are manufactured to precise measurements to ensure they fit perfectly in their intended applications. The specification also covers the surface finish and any necessary heat treatments to enhance the tubes' properties.
Key Features
- High Strength: Capable of withstanding high pressure and temperature.
- Durability: Long-lasting performance in demanding environments.
- Corrosion Resistance: Suitable for use in various chemical and environmental conditions.
- Precision: Manufactured to exact specifications for optimal fit and function.
Chemical Composition
The chemical composition of TU 14-3-460 seamless steel tubes is crucial for their performance. Below is a table presenting the typical chemical composition:
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.17 - 0.24 |
| Silicon (Si) | 0.17 - 0.37 |
| Manganese (Mn) | 0.35 - 0.65 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Chromium (Cr) | ≤ 0.25 |
| Nickel (Ni) | ≤ 0.25 |
| Copper (Cu) | ≤ 0.25 |
Mechanical Properties
The mechanical properties of these tubes are critical for their performance in high-stress environments. The table below outlines the typical mechanical properties:
| Property | Value |
|---|---|
| Tensile Strength | 370 - 490 MPa |
| Yield Strength | ≥ 235 MPa |
| Elongation | ≥ 24% |
| Impact Strength | ≥ 27 J at -20°C |
Steel Grade
The TU 14-3-460 specification covers several steel grades, each offering specific properties tailored to different applications. Common grades include 20, 20Mn, and 20MnV, which vary in their alloying elements and mechanical properties.
Application
TU 14-3-460 seamless steel tubes are widely used in:
- Boilers: For transporting steam and hot water.
- Pipelines: For conveying oil, gas, and other fluids.
- Heat Exchangers: Due to their excellent thermal conductivity.
- Power Plants: For high-pressure and high-temperature applications.
Possible Alternative Grades
While TU 14-3-460 is a popular choice, other grades may be suitable depending on specific requirements:
- ASTM A106: Often used for high-temperature service.
- EN 10216-2: Suitable for pressure purposes.
- DIN 17175: Commonly used in boiler construction.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
