Seamless Automotive Steel Pipe Cold Drawn For Axle Shaft Sleeve YB / T5035 - 1993
YB/T5035-1993 Seamless Steel Tube for Axle Shaft Sleeve 45 45Mn2 40Cr 20CrNi3A
Axle tubes/ Axle Housing Tubes
Seamless steel tubes for automotive axle housing as per standard YB-T5035
Characteristic: long length and cutting length (custom for you)
Various material for your specified end use
Tubes with different heat treatment to have excellent mechanical properties according to customers’ requests.
Available sizes: OD : 78 77 77.5 80 92 95 96 102 108 114 115 116 120 121 122
WT : 7 10 11.5 12 13 15 16 20 20.5 26
Detail available sizes:
If customer advise the OD and WT will follow below tolerance.
Tolerance for OD ±1%
Wall thickness ≤7mm -9,+15%
＞7-15mm -10,+12.5%
＞15mm -7.5 ,+12.5%
If customer advise the OD ID and WT will follow below tolerance.
OD ±1.0%
ID ±1.75%
WT ≤15%
OD 77mm 57mm 10mm
OD +1.0 -0.5mm
ID +1.5 -0.5mm
WT ≤15%
Bending:
WT≤15mm >>>1.5mm/m
WT＞15mm>>>3.0mm/m

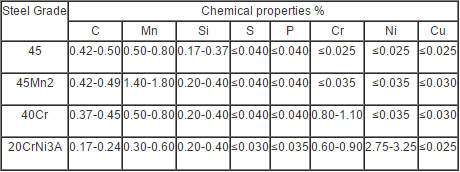

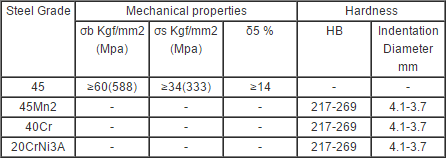

Chinese Grade :45 45Mn2 40Cr 20CrNi3A
About us
1, A professional steel pipes materials inventor, manufacturer and solution provider
Equipment & technology
2, Our technicians are of great engineering experience in steel pipe industry for more than 20 years
Service
3, Stable product quality , supply, the good faith management
High quality
Standard:ISO9001-2008
Number:02112Q119491R2M
Issue Date:2012-12-12
Expiry Date:2015-12-11
Scope/Range:Manufacture and After-Sales Service of Seamless Steel Tube
Issued By:IAF
High quality
Standard:ISO14001-2008
Number:02112E10591R2M
Issue Date:2012-12-12
Expiry Date:2015-12-11
Scope/Range:Manufacture and Related Management Activities of Seamless Steel Tube
Issued By:IAF
High quality
Standard:TS16949
Number:0200393
Issue Date:2015-01-07
Expiry Date:2018-01-06
Scope/Range:Cold Drawn Seamless Steel Tubes
Issued By:IATF
Packing Details : In bundles in wooden box of automotive steel tube
Delivery Details : 6-8 weeks
In hexagonal bundles packaging with woven
In wooden boxes.
Used for flying head machine
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time ?
A: It is according to quantity. And usually is 35-50 days after receiving 30% T/T in advance.
Q: How to get the sample of automotive steel tube ?
A:
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
Q: What is your terms of payment ?
A:
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sightGet in Touch
