Round Boiler Seamless Precision Steel Tube Cold Drawn ASTM A192 Standard
boiler seamless steel tube and pipe
Round Boiler Seamless Steel Tube And Pipe ASTM A192
Applications:
For Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture Mothod:
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable. boiler seamless steel tube and pipe is our strength on worldwide market for USA, Middile East Market.
Heat treatment:
Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
Steel grade SA192 Chemical Composition & Mechanical properties
| C | Mn | P | S | Si | Tensile Strength | Yeild point | Elongation |
| 0.06-0.18 | 0.27-0.63 | 0.035Max | 0.035Max | 0.25Max | min ksi[Mpa] 47[325] | min ksi[Mpa] 26[180] | ≥35% |
Hardness
| Brinell Hardness | Rockwell Hardness Number |
| WT≥0.200in(5.1mm) | WT<0.200in(5.1mm) |
| 137HRB | 77HRB |

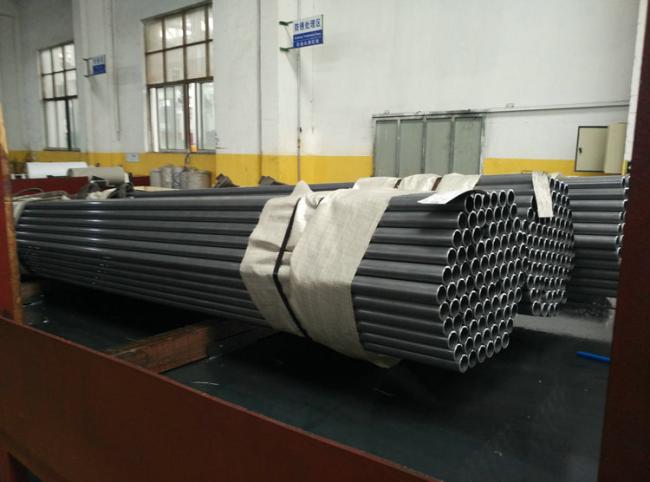

Detailed Images
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Why Choose TORICH ?
A: Most of TORICH Customers are ordering for over 10 years.
B: No quality claims for the past 3 years!
C: 100% prompt delivery in the past 3 years.
D: 100% dimensional check and 100% visual inspection on tube surfaces.
E: 100% eddy current test and ultrasonic test for detecting longitudinal and transversal defects.
